Edison ABC15R - Fast Acting Fuse 15A 250VAC
Edison ABC15R - Fast Acting Fuse 15A 250VAC

Edison ABC15R - Fast Acting Fuse 15A 250VAC

Edison Fuses
Price
Save $-1.75
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

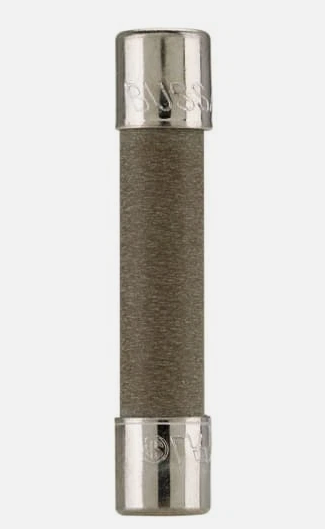

Edison ABC15R is a fast acting small dimension fuse designed for electronic circuit protection. It is rated for 15 amps with voltage ratings of 250 VAC and 125 VDC, offering a breaking capacity of 750 A at 250 VAC and 10 kA at 125 VDC. The fuse features a ceramic tube body measuring 1/4 inch diameter by 1-1/4 inch length, with a non-indicating design that mounts in a holder type fixture. It complies with industry standards for reliable overcurrent protection in sensitive electronic applications. This fuse is typically used in industrial control panels, power supplies, and other electronic equipment requiring fast-acting fault interruption.

Key Features & Specifications
  • Amperage: 15 A
  • Voltage Rating: 250 VAC / 125 VDC
  • Fuse Type: Fast Acting
  • Body Size: 1/4 in x 1-1/4 in (6.3 mm x 32 mm)
  • Body Material: Ceramic
  • Interrupt Rating: 750 A at 250 VAC, 10 kA at 125 VDC
  • Mounting Type: Holder
  • Poles: Single
  • Indicating: Non-Indicating
  • Series: ABC
  • Weight: 5.19 lb
  • Country of Origin: China
