Bussmann ABC-8-R - Low Voltage Fuse 8A 250V (200kA AIC)
Bussmann ABC-8-R - Low Voltage Fuse 8A 250V (200kA AIC)
Bussmann ABC-8-R - Low Voltage Fuse 8A 250V (200kA AIC)
Bussmann ABC-8-R - Low Voltage Fuse 8A 250V (200kA AIC)

Bussmann ABC-8-R - Low Voltage Fuse 8A 250V (200kA AIC)

Bussmann
Price
Save $15.09
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

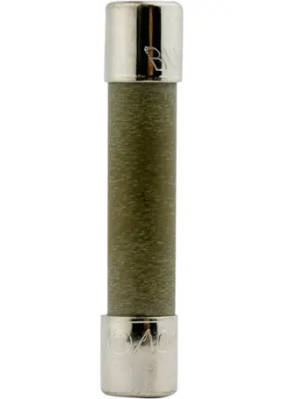

Bussmann ABC-8-R is a low-voltage current-limiting fuse designed for overcurrent protection in industrial control circuits and equipment. It features a 250V AC voltage rating and a precise 8A current rating to safeguard sensitive components. The fuse is constructed as a single-barrel, ferrule-connected device with a 1-1/4 inch body length and a 0.25-inch diameter, weighing 0.0047 lb. It complies with CSA Certification Class 1422-01 and UL 248-14 (Guide JDYX) standards, offering an interrupting rating of 200kA at 250V AC for reliable performance in panelboards, control transformers, and motor branch circuits.

Key Features & Specifications
  • Type: Low-voltage, current-limiting, single-barrel fuse with ferrule connection
  • Voltage Rating: 250V AC
  • Current Rating: 8A
  • Dimensions: 1-1/4 in length, 0.25 in diameter
  • Standards: CSA Certification Class 1422-01, UL 248-14 Guide JDYX
  • Applications: Protection for industrial control circuits, panelboards, control transformers, and motor branches
  • AIC rating: 200,000A @ 250V AC
  • Connection: Ferrule
  • Barrels: 1
  • Weight: 0.0047 lb


Product Identification
  • UPC: 05171264631
  • GTIN: 00051712646314
