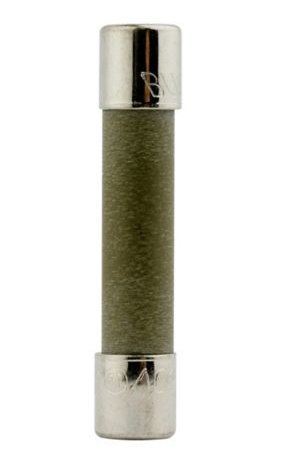

Bussmannn ABC-4-R - Low Voltage Fuse 4A@250V (200A AIC, Ferrule Connection)

Bussmannn ABC-4-R is a low-voltage ferrule-type fuse designed for circuit protection in industrial electrical systems. It features a 250V AC voltage rating and 4A current rating with a 200A interrupting capacity at 250V AC, housed in a compact 1-1/4" cylindrical body with 0.25" diameter ferrule connections. The fuse meets CSA Class 1422-01 and UL 248-14 (JDYX) standards, constructed with durable materials for reliable operation in control circuits, instrumentation, and small motor applications.

Key Features & Specifications

• Type: ABC-series low-voltage fuse with single-barrel ferrule connection
• Voltage Rating: 250V AC
• Current Rating: 4A
• Dimensions: 1-1/4" length x 0.25" diameter
• Standards: CSA Class 1422-01, UL 248-14 (JDYX)
• Applications: Control circuits, instrumentation, small motor protection
• AIC rating: 200A@250Vac
• Connection: Ferrule
• Barrels: 1
• Weight: 1 lb
• Certification: CSA, UL

Product Identification

• UPC: 05171264627
• GTIN: 00051712646277
