Bussmann ABC-3-R - Low Voltage Fuse 3A 250V (100kA AIC)

Bussmann
Price
Save $16.81
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

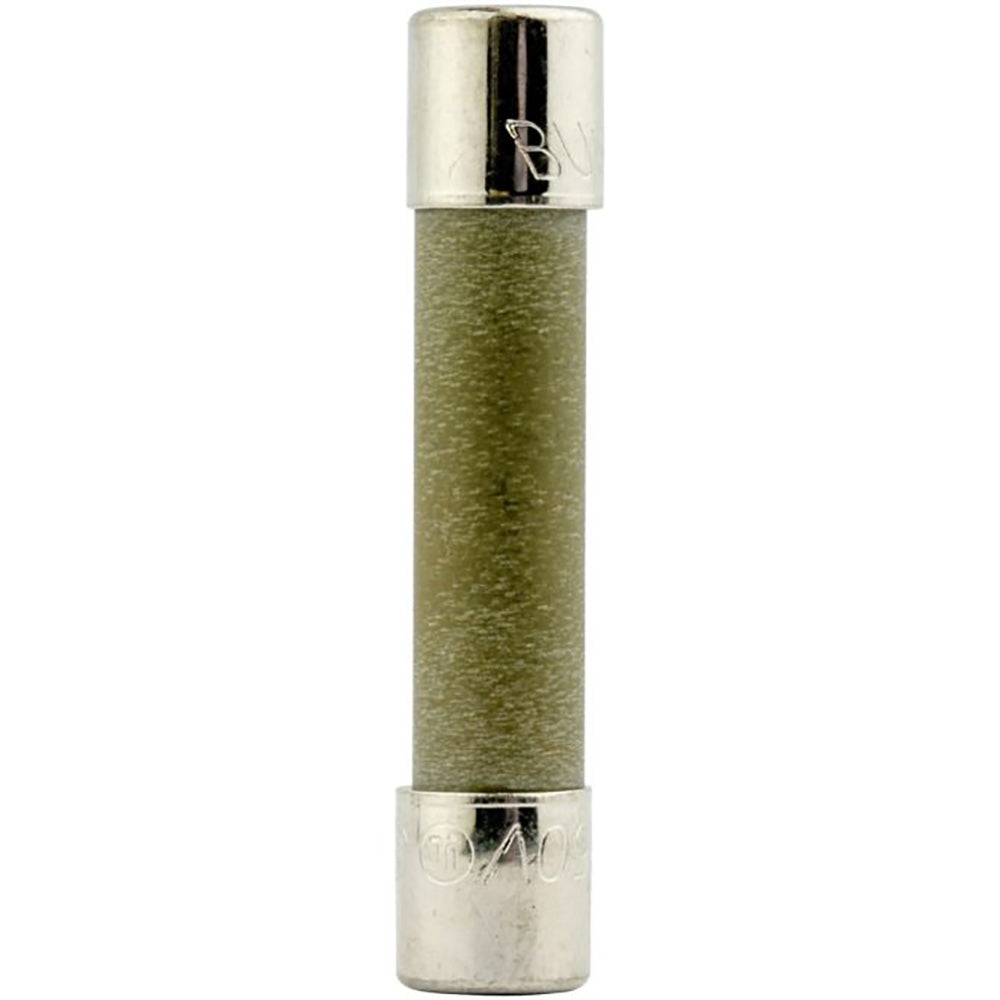

Bussmann ABC-3-R is a low-voltage, current-limiting fuse designed for overcurrent protection in industrial control circuits and equipment. It features a 3A current rating and a 250V AC voltage rating, housed in a compact, single-barrel ferrule construction with a 1-1/4 inch body length and 0.25 inch diameter. The fuse is certified to UL 248-14 and CSA Class 1422-01 standards, ensuring reliable performance and an interrupting rating of 100kA at 250V AC for robust protection in panelboards, control transformers, and motor branch circuits.

Key Features & Specifications
  • Type: Low-voltage, current-limiting, single-barrel ferrule fuse
  • Voltage Rating: 250V AC
  • Current Rating: 3A
  • Dimensions: 1-1/4 in length, 0.25 in diameter
  • Standards: UL 248-14 (Guide JDYX), CSA Certification Class 1422-01
  • Applications: Protection for industrial control circuits, panelboards, control transformers, and motor branches
  • AIC rating: 100,000A @ 250V AC
  • Connection: Ferrule
  • Barrels: 1
  • Family: ABC
  • Weight: 0.0047 lb


Product Identification
  • UPC: 05171264624
  • GTIN: 00051712646246
