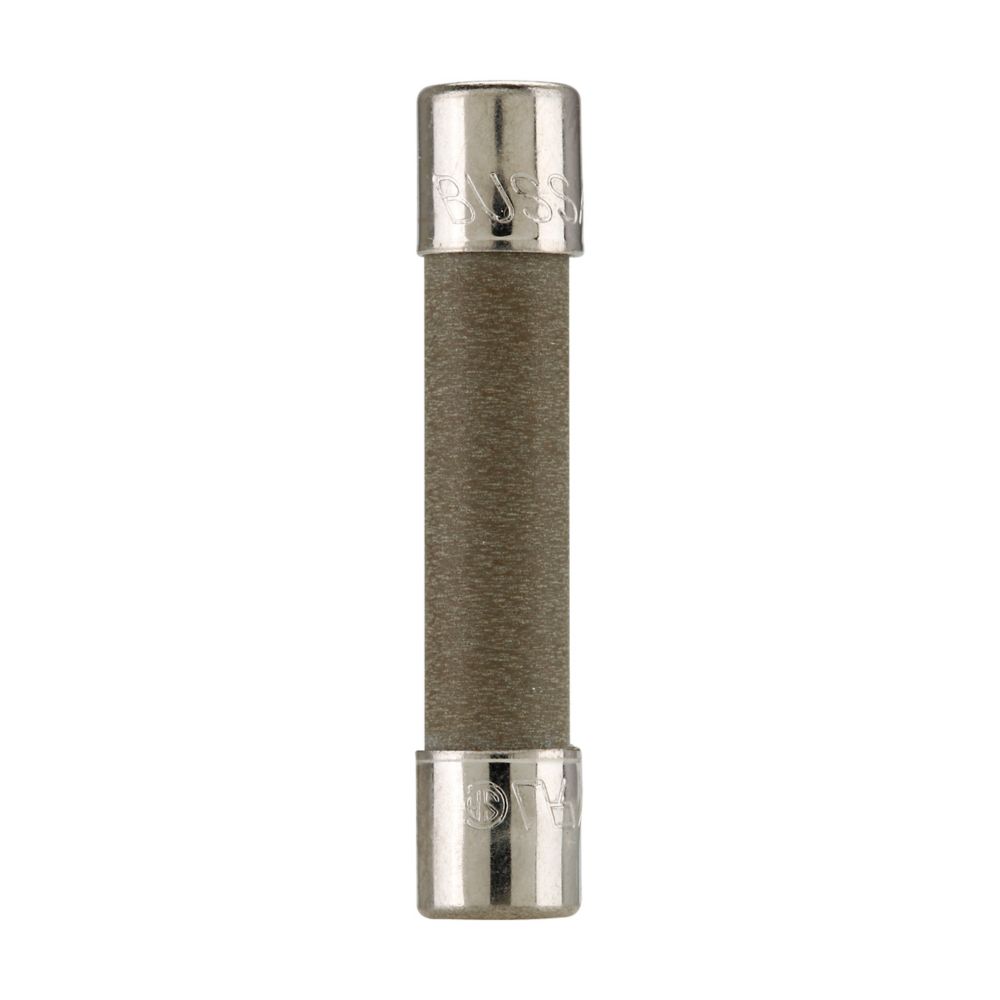

Eaton Bussmann ABC-25-R - Low Voltage Fuse 25A (200kA AIC)
Eaton Bussmann ABC-25-R - Low Voltage Fuse 25A (200kA AIC)
Eaton Bussmann ABC-25-R - Low Voltage Fuse 25A (200kA AIC)
Eaton Bussmann ABC-25-R - Low Voltage Fuse 25A (200kA AIC)

Eaton Bussmann ABC-25-R - Low Voltage Fuse 25A (200kA AIC)

Bussmann
Price
Save $25.15
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Bussmann ABC-25-R is a low-voltage, current-limiting fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 25A current rating and a 250V AC voltage rating, with a high 200kA interrupting capacity at 250V AC for reliable short-circuit protection. The fuse is constructed as a single-barrel, ferrule-connected device with a 1-1/4 inch body length and a 0.25-inch diameter, and it complies with key industry standards including UL 248-14 and CSA Class 1422-30. This fuse is typically applied in panelboards, switchboards, and motor control centers to safeguard equipment and conductors.

Key Features & Specifications
  • Type: Low-voltage, current-limiting, single-barrel fuse with ferrule connection
  • Voltage Rating: 250V AC
  • Current Rating: 25A
  • Dimensions: 1-1/4 in length, 0.25 in diameter
  • Standards: UL 248-14 (Guide JDYX2), CSA Certification Class 1422-30
  • Applications: Branch circuit and feeder protection in industrial panelboards, switchboards, and motor control centers
  • AIC rating: 200,000A @ 250V AC
  • Connection: Ferrule
  • Barrels: 1
  • Family: ABC
  • Weight: 0.00644 lb


Product Identification
  • UPC: 05171264623
  • GTIN: 00051712646239
