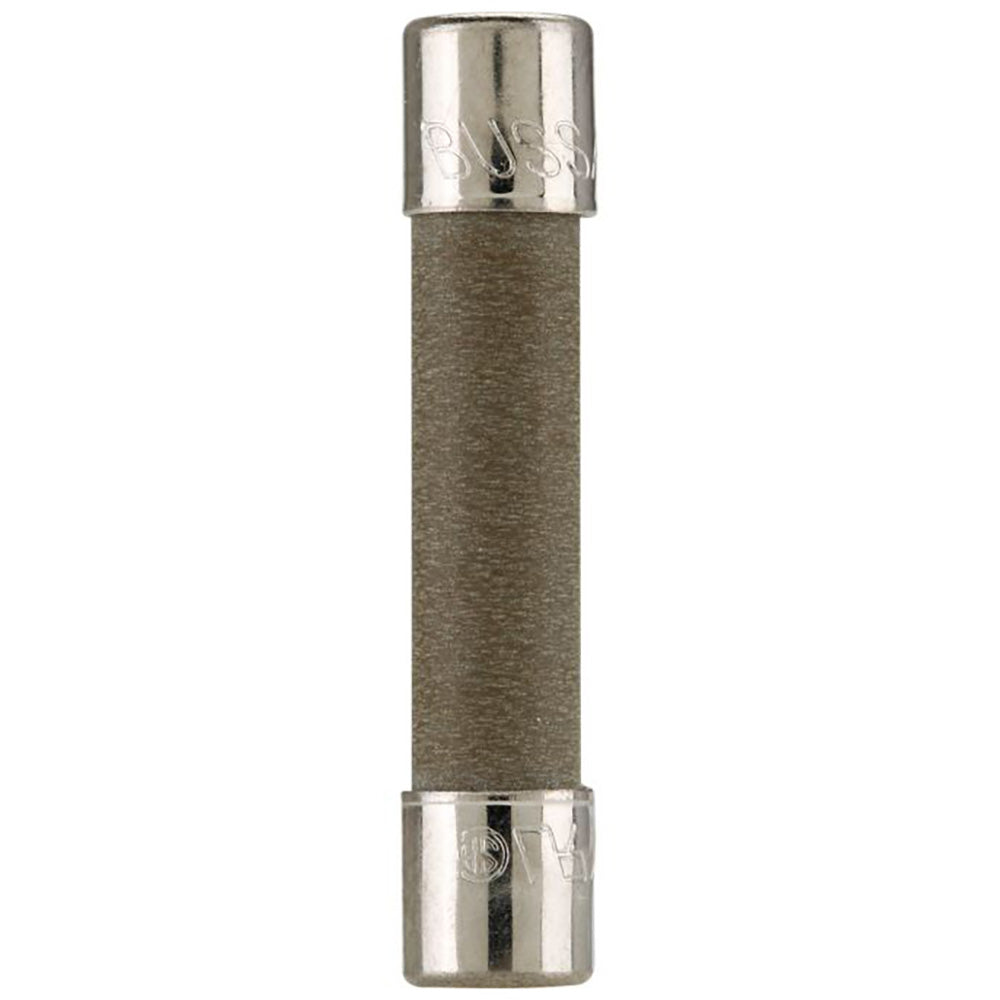

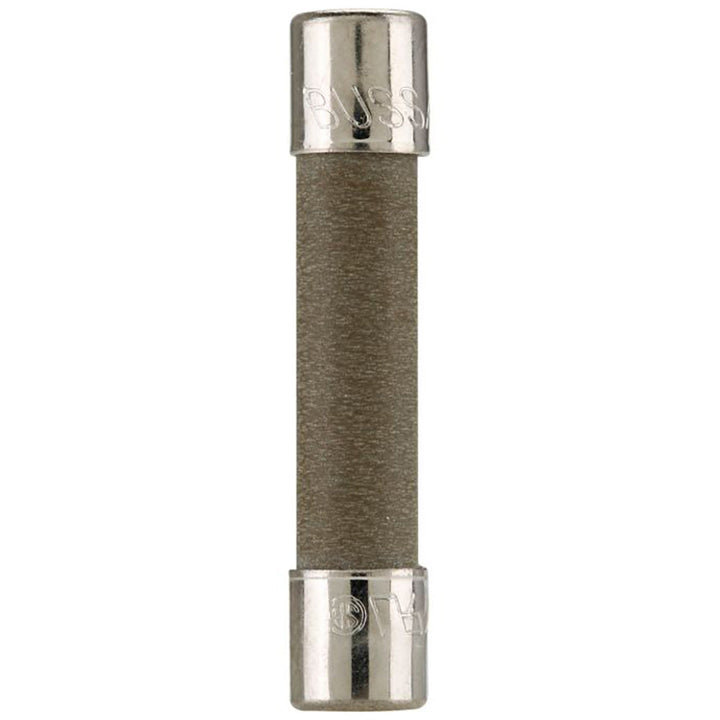

Eaton Bussmann ABC-20-R - Time-Delay Fuse 20A 250V (CSA/UL)

Bussmann
Price
Save $23.26
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Bussmann ABC-20-R is a low-voltage, time-delay fuse designed for branch circuit protection in industrial control panels and equipment. It features a 20A current rating and a 250V voltage rating, with a compact ferrule connection and a single-barrel construction measuring 1-1/4 inches in length and 0.25 inches in diameter. The fuse is certified to CSA Class 1422-30 and UL 248-14 standards, offering an interrupting rating of 400A at 250V AC for reliable protection against overloads and short circuits in motor control circuits and transformer primaries.

Key Features & Specifications
  • Type: Low-voltage, time-delay, single-barrel fuse with ferrule connection
  • Voltage Rating: 250V AC
  • Current Rating: 20A
  • Dimensions: 1-1/4 in length, 0.25 in diameter
  • Standards: CSA Certification Class 1422-30, UL 248-14 Guide JDYX2
  • Applications: Industrial control panels, motor circuits, transformer protection
  • AIC rating: 400A @ 250V AC
  • Connection: Ferrule
  • Barrels: 1
  • Weight: 0.00644 lb


Product Identification
  • UPC: 05171264622
  • GTIN: 00051712646222
