Eaton Bussmann ABC-1/4-R - Time-Delay Fuse 1A 250V (35kA AIC)
Eaton Bussmann ABC-1/4-R - Time-Delay Fuse 1A 250V (35kA AIC)
Eaton Bussmann ABC-1/4-R - Time-Delay Fuse 1A 250V (35kA AIC)
Eaton Bussmann ABC-1/4-R - Time-Delay Fuse 1A 250V (35kA AIC)

Eaton Bussmann ABC-1/4-R - Time-Delay Fuse 1A 250V (35kA AIC)

Bussmann
Price
Save $23.88
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

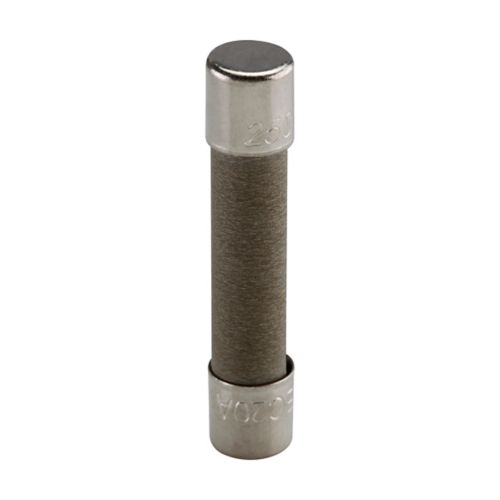

Eaton Bussmann ABC-1/4-R is a low-voltage, time-delay fuse designed for branch circuit and feeder protection in industrial control panels and equipment. It features a 1A current rating and a 250V AC voltage rating, providing reliable overcurrent protection with an interrupting rating of 35,000 amperes at 250V AC. The fuse is constructed with a single-barrel, ferrule connection design, measuring 1-1/4 inches in length and 0.25 inches in diameter, and is compliant with CSA Class 1422-01 and UL 248-14 standards. Typical applications include the protection of motor circuits, transformers, and solenoid coils where a time-delay characteristic is required to withstand harmless inrush currents.

Key Features & Specifications
  • Type: Low Voltage, Time-Delay (Slow-Blow), Single Barrel Ferrule Fuse
  • Voltage Rating: 250V AC
  • Current Rating: 1A
  • Dimensions: 1-1/4 in Length x 0.25 in Diameter
  • Standards: CSA Certification Class 1422-01, UL 248-14 Guide JDYX
  • Applications: Motor Circuits, Transformers, Solenoids, Industrial Control Panels
  • AIC rating: 35,000A @ 250V AC
  • Connection: Ferrule
  • Barrels: 1
  • Family: ABC
  • Weight: 0.0047 lb


Product Identification
  • UPC: 05171264614
  • GTIN: 00051712646147
