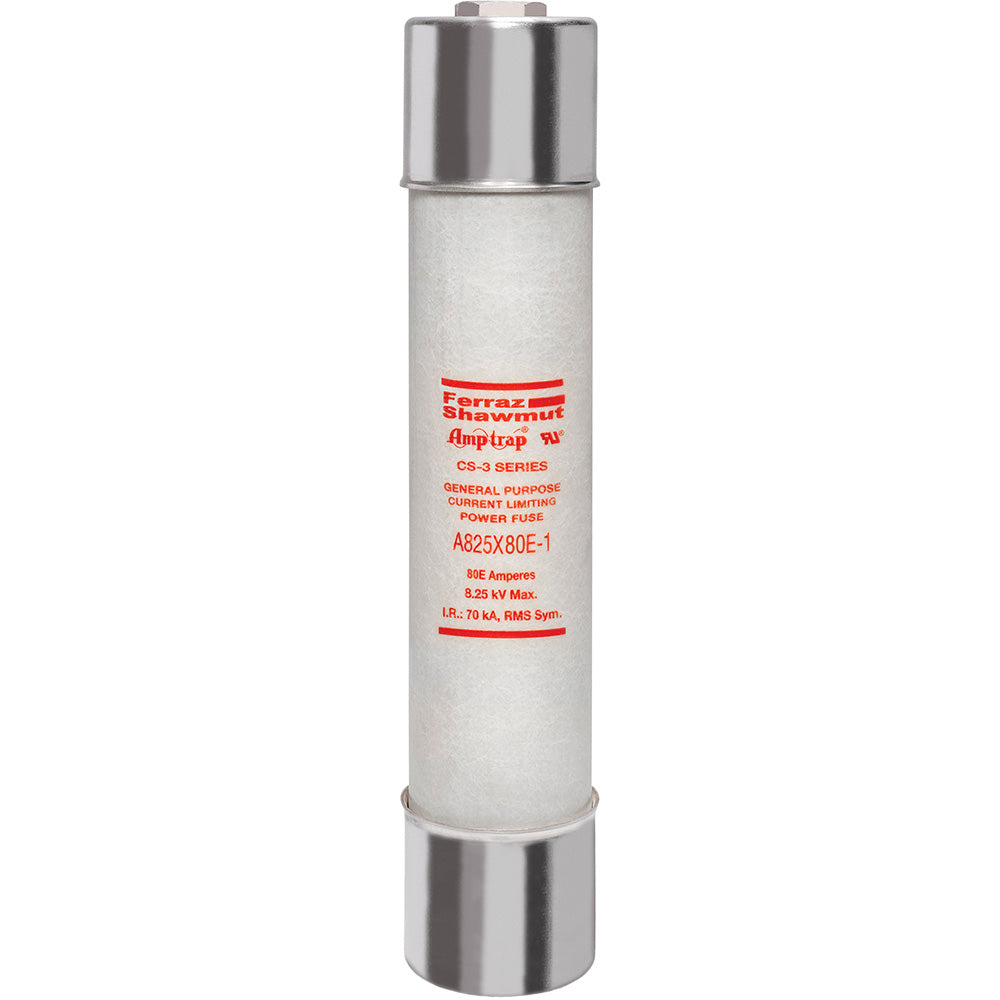

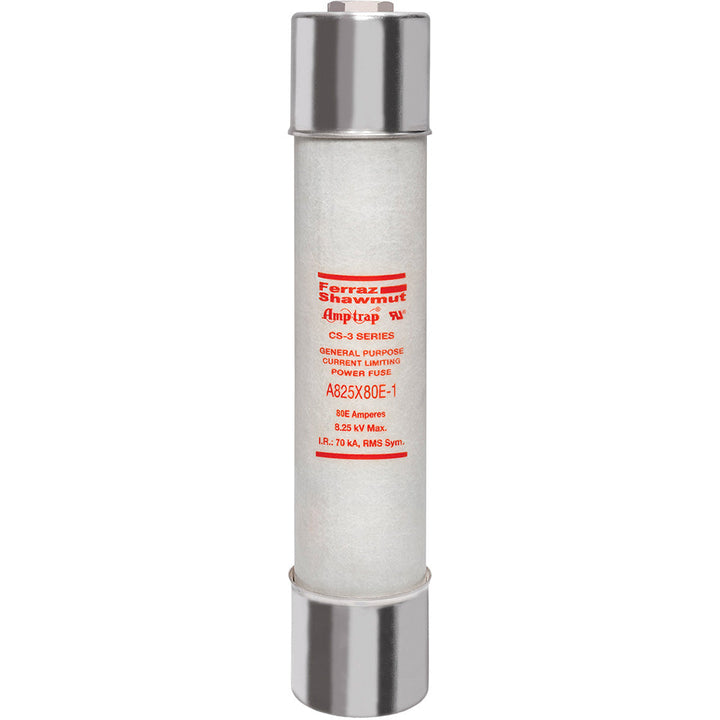

Mersen A825X80E-1 - Medium Voltage Fuse 8250V 80A (50kA AIC)

Mersen A825X80E-1 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. Rated for 8250V AC operation with an 80A current rating, this Class E fuse features a single-barrel construction with a 3-inch diameter and 12-inch clip center spacing. Its 50kA interrupting capacity at 8.25kV meets stringent protection requirements, while the robust 11 lb design ensures durability in demanding environments. The CS-3 series fuse complies with industry standards for medium voltage applications, typically used in transformer protection, motor circuits, and feeder protection systems.

Key Features & Specifications

• Type: Current-limiting medium voltage fuse, single-barrel construction
• Voltage Rating: 8250V AC
• Current Rating: 80A
• Dimensions: 3" diameter, 12" clip center spacing
• Standards: Class E rating
• Applications: Transformer protection, motor circuits, feeder protection
• AIC rating: [email protected]
• Weight: 11 lb

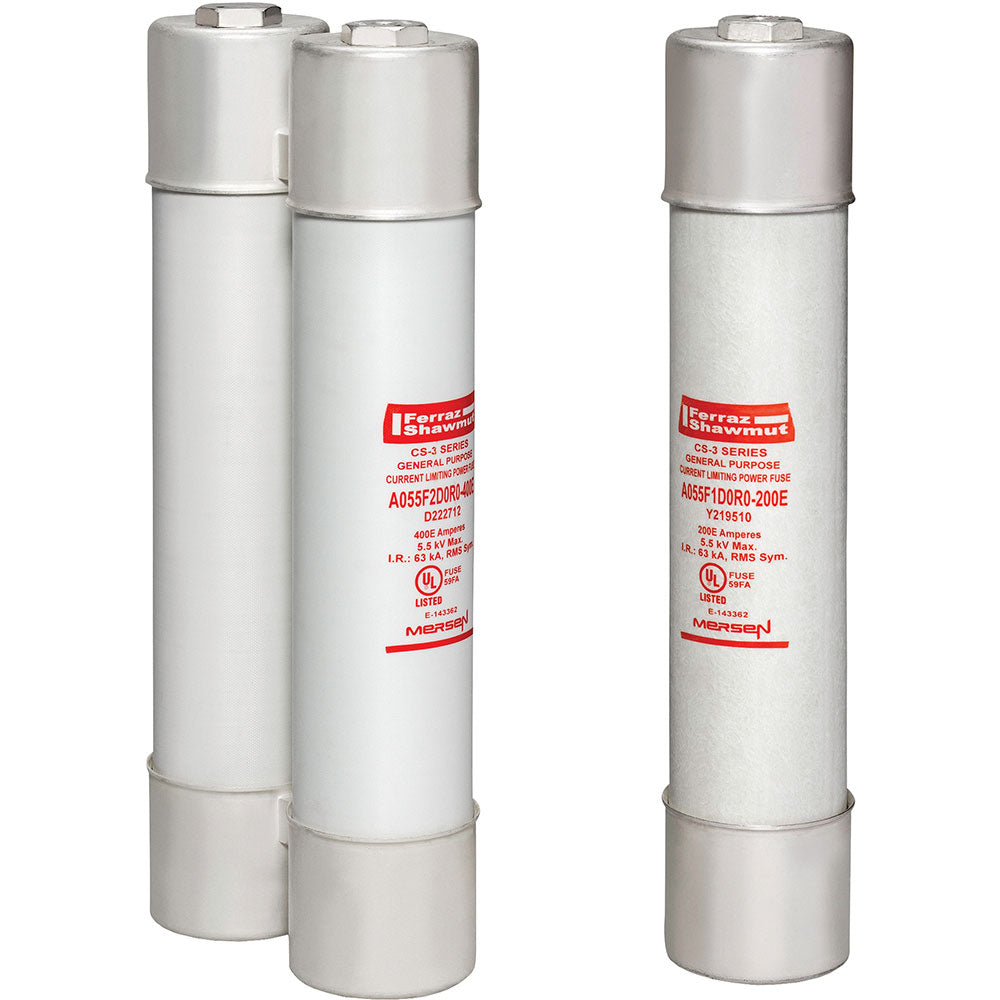

• Family: CS-3 Series

Product Identification

• UPC: 782001803728
• GTIN: 00782001803728
