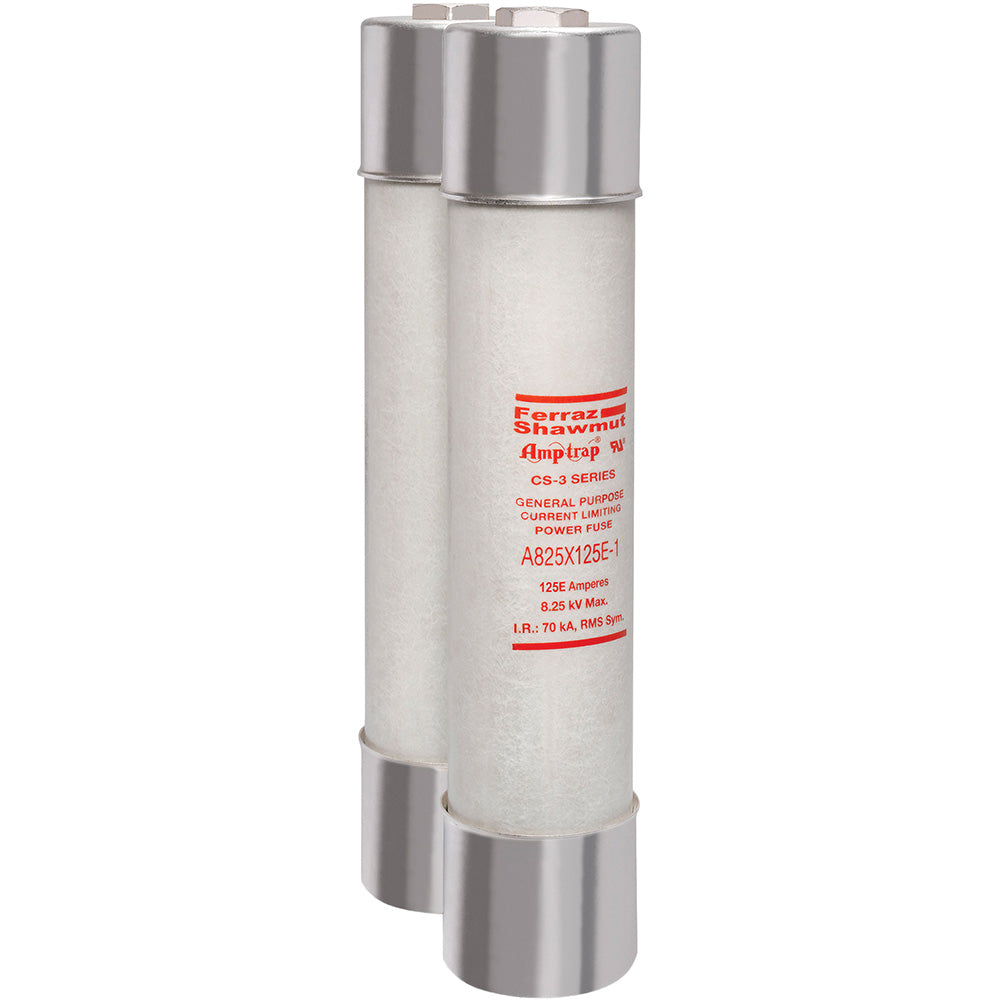

Mersen A825X125E-1 - Medium Voltage Fuse 8250V 125A (50kA AIC)

Mersen A825X125E-1 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. Rated for 8250V AC operation with a 125A current rating, this Class E fuse features a dual-barrel construction with a 3-inch diameter and 12-inch clip center spacing for secure mounting. The fuse meets stringent industry standards with a 50kA interrupting capacity at 8.25kV, providing reliable protection against short circuits. Its robust design is engineered for demanding applications including transformer protection, motor starters, and medium-voltage switchgear in utility and industrial environments.

Key Features & Specifications

• Type: Current-limiting medium voltage fuse, dual-barrel design
• Voltage Rating: 8250V AC
• Current Rating: 125A
• Dimensions: 3" diameter, 12" clip center spacing
• Standards: Class E rating
• Applications: Transformer protection, motor circuits, switchgear
• AIC rating: [email protected]
• Barrels: 2
• Weight: 21 lb

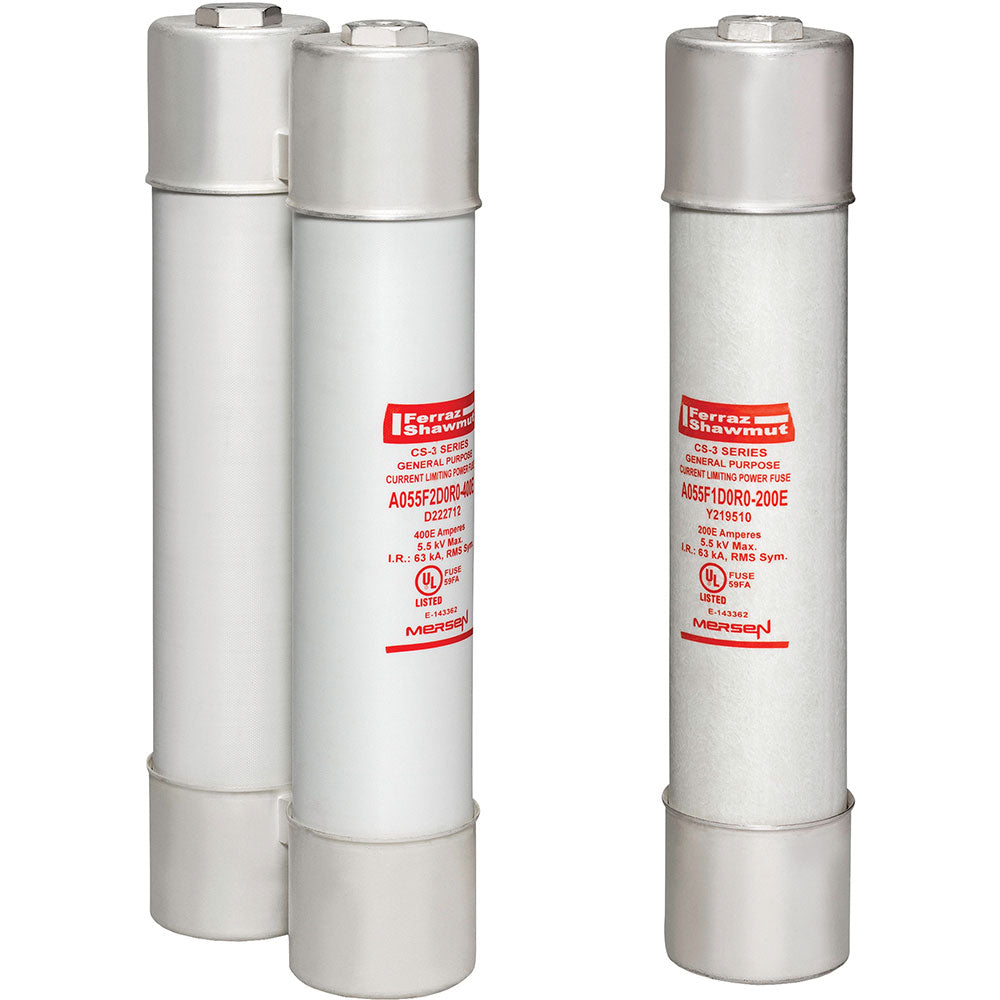

• Family: CS-3 Series

Product Identification

• UPC: 782001803766
• GTIN: 00782001803766
