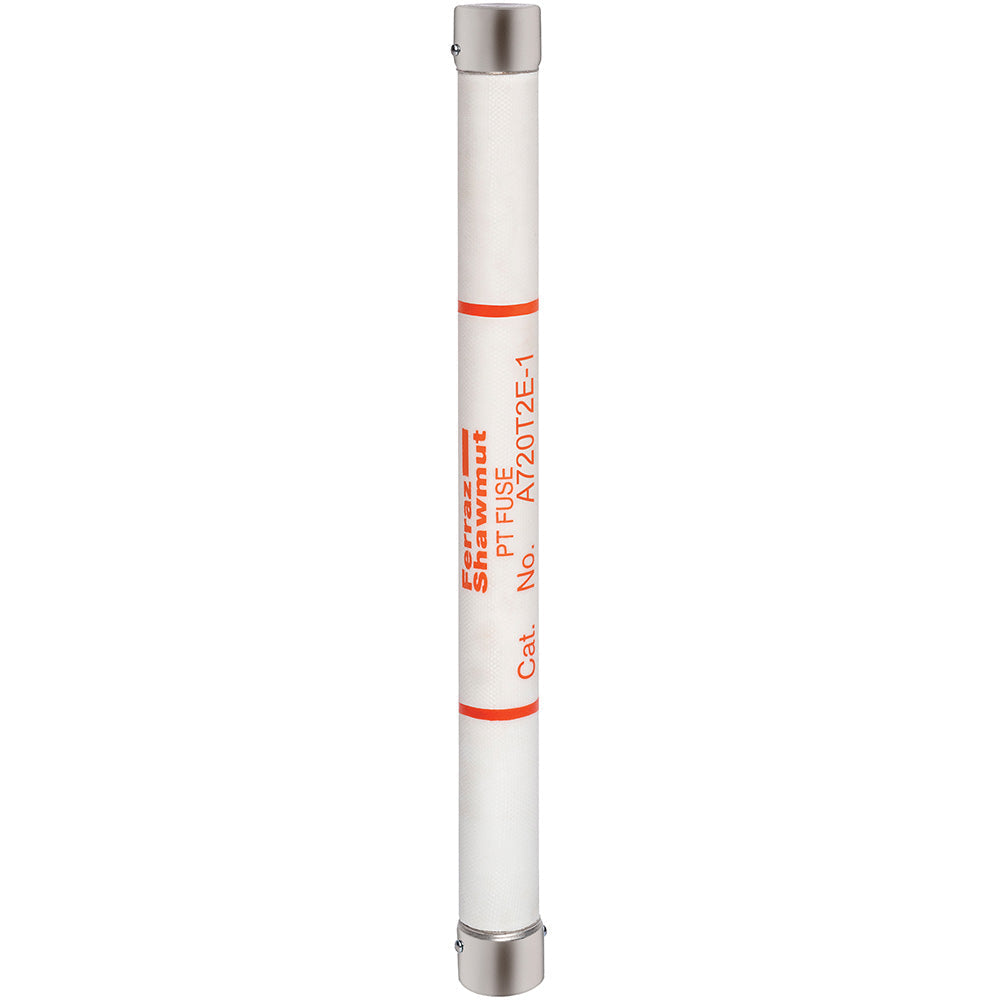

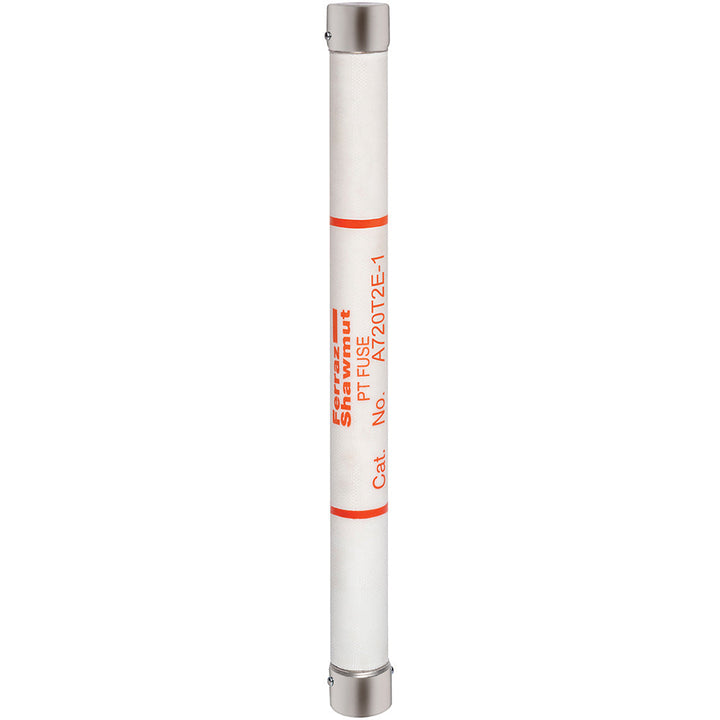

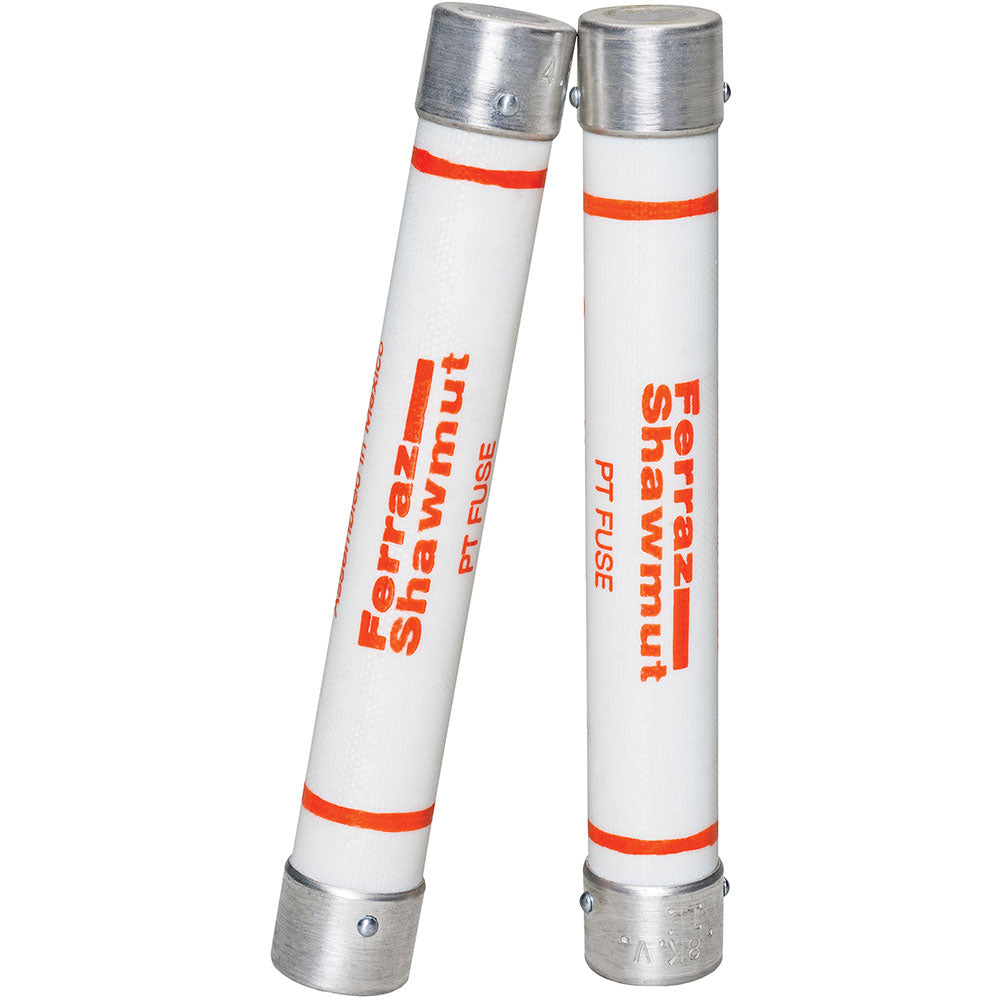

Mersen A720T2E-1 - Medium Voltage Fuse 2A 7200V (Class E 50kA AIC)

Mersen A720T2E-1 is a medium voltage current-limiting fuse from the Amp-Trap Series designed for overcurrent protection in industrial power distribution systems. It features a 7200V AC voltage rating with a 2A current rating, providing reliable circuit interruption capabilities. The fuse construction utilizes a single-barrel design measuring 9-1/2 inches in length with a 0.81-inch diameter and 8.88-inch clip center spacing, weighing 5.19 lb for robust mechanical stability. This Class E rated fuse meets industry standards with a 50kA interrupting rating at 7.2kV, ensuring compliance with medium voltage protection requirements. Typical applications include motor protection, transformer circuits, and feeder protection in industrial facilities and utility substations.

Key Features & Specifications

• Type: Medium Voltage Current-Limiting Fuse, Single Barrel Design
• Voltage Rating: 7200V AC
• Current Rating: 2A
• Dimensions: 9-1/2 inch length, 0.81 inch diameter
• Standards: Class E Rated
• Applications: Industrial Power Distribution, Motor Protection, Transformer Circuits
• AIC rating: [email protected]
• Clip Center: 8.88 inches
• Barrels: 1
• Class Rating: E
• Weight: 5.19 lb
• Family: Amp-Trap Series

Product Identification

• UPC: 782001801038
• GTIN: 00782001801038
