Cutler Hammer A70QS80-4 - Amp-Trap Current-Limiting Fuse 80A (200kA AIC @ 700V)

Cutler Hammer
Price
Save $1,988.04
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

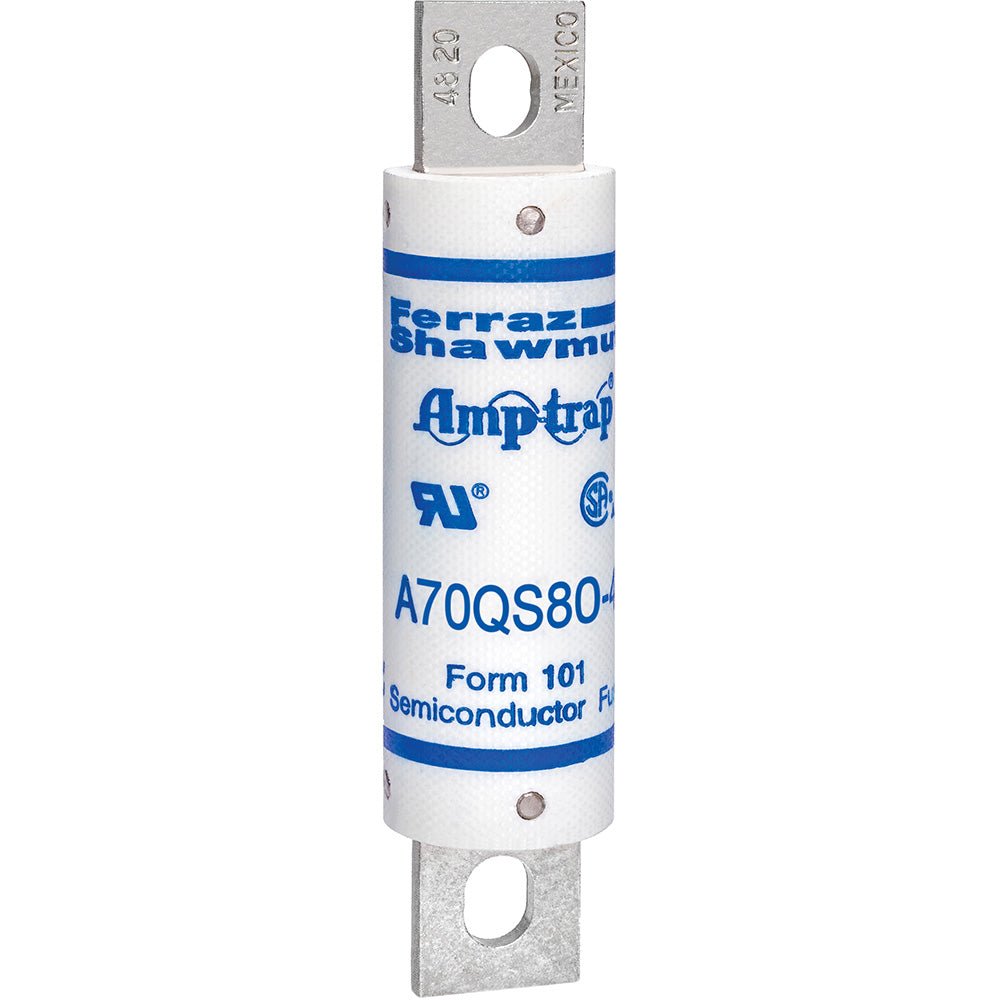

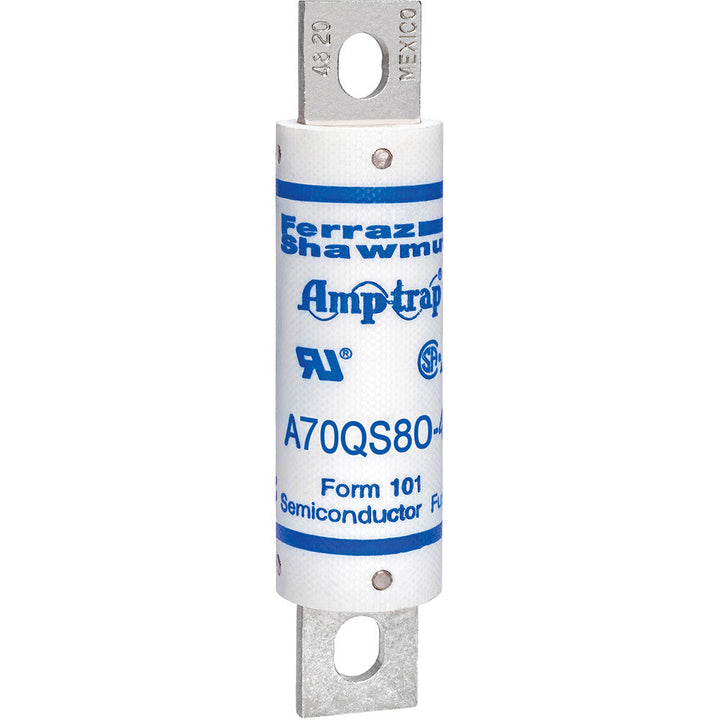

Cutler Hammer A70QS80-4 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide superior short-circuit protection in industrial electrical systems. It features a 700V AC voltage rating and a 80A current rating, ensuring reliable operation under demanding conditions. The fuse is constructed as a single-barrel unit measuring 1 inch in diameter with a 4.38-inch length and weighs 0.51 lb, featuring robust construction for industrial environments. This component meets CE, UL Recognized (Guide JFHR2, File 60314), and CSA Certified (LR12636) standards, ensuring compliance with international safety requirements. Typical applications include protection of motor circuits, transformers, and feeder circuits where high interrupting capacity is critical, with an AIC rating of 200kA at 700V AC.

Key Features & Specifications
  • Type: Low Voltage Current-Limiting Fuse, Amp-Trap Family, Single Barrel
  • Voltage Rating: 700V AC
  • Current Rating: 80A
  • Dimensions: 1" Diameter x 4.38" Length
  • Standards: CE, UL Recognized (Guide JFHR2, File 60314), CSA Certified (LR12636)
  • Applications: Motor Circuit Protection, Transformer Protection, Feeder Circuit Protection
  • AIC rating: 200kA@700V AC
  • Barrels: 1
  • Weight: 0.51 lb
  • Certification: CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636


Product Identification
  • UPC: 78200194865
  • GTIN: 00782001948658
