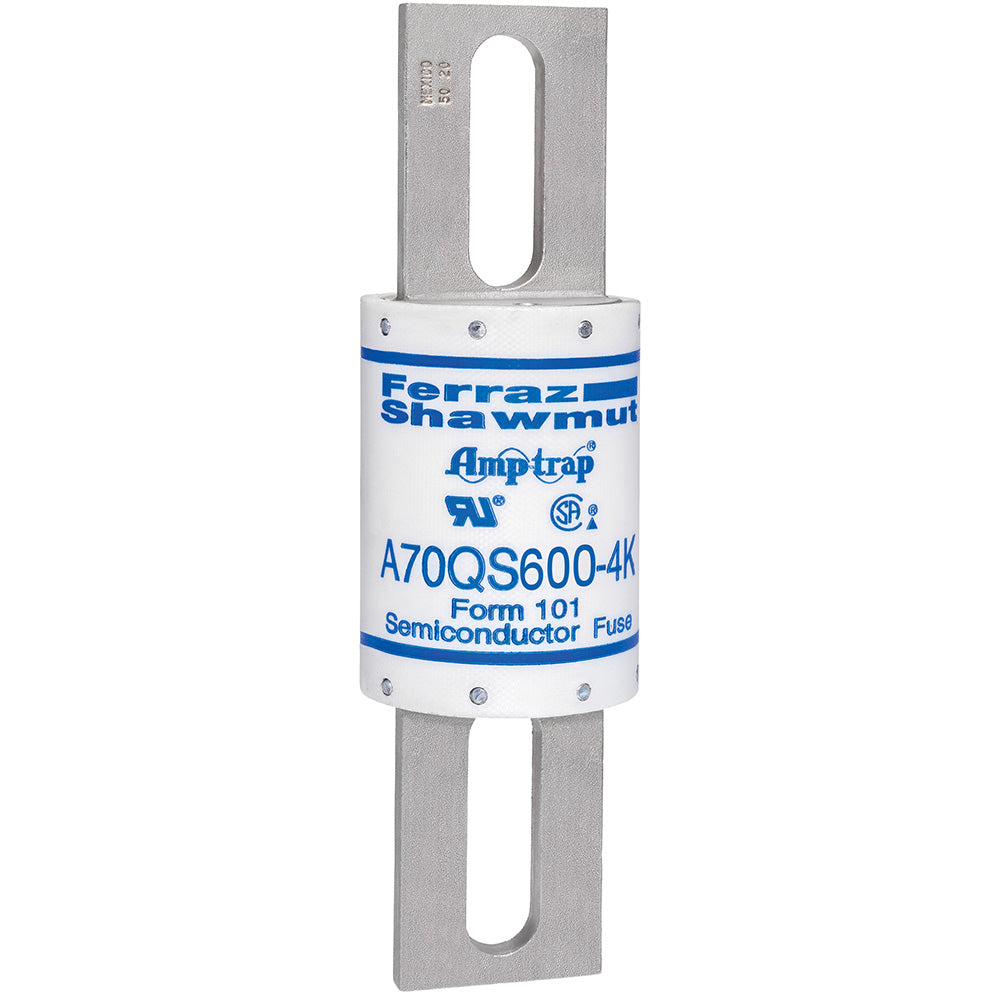

Ferraz Shawmut A70QS600-4K - Low Voltage Fuse 700V/600A (200kA AIC)

Ferraz Shawmut A70QS600-4K is a low-voltage current-limiting fuse from the Amp-Trap family, designed for high-interrupting capacity circuit protection in industrial power distribution systems. It features a 700V AC voltage rating and 600A current rating with a 200kA interrupting capacity at rated voltage, housed in a compact 7.09-inch cylindrical body with 2-inch diameter constructed for durable performance. The fuse meets CE, UL (Guide JFHR2, File 60314), and CSA (LR12636) certifications, ensuring compliance with international safety standards for critical applications such as motor control centers, switchgear, and transformer protection.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse (A70QS), single barrel design
• Voltage Rating: 700V AC
• Current Rating: 600A
• Dimensions: 7.09 in length, 2 in diameter
• Weight: 2 lb
• Standards: CE, UL Recognized (JFHR2, File 60314), CSA Certified (LR12636)
• Applications: Industrial power distribution, motor protection, switchgear
• AIC rating: 200kA @ 700V
• Country of Origin: Mexico

Product Identification

• UPC: 78200114126
• GTIN: 00782001141264
