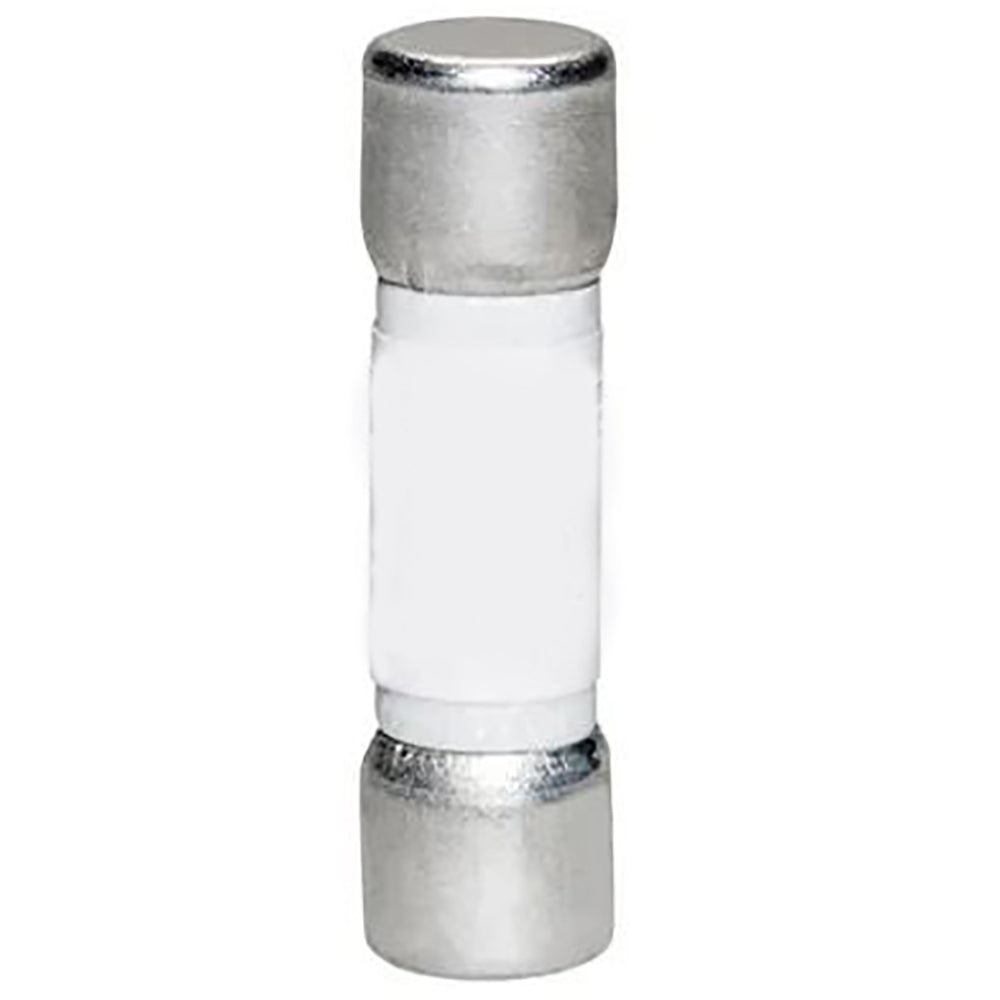

Cutler Hammer A70QS50-14F - Low Voltage Current-Limiting Fuse 50A (200kA AIC @ 690V)

Cutler Hammer A70QS50-14F is a low voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent and short-circuit protection in electrical systems. It features a 50A current rating and a 690V AC voltage rating, capable of interrupting faults up to 200kA. The fuse is constructed with a single-barrel design featuring ferrule connections and measures 14mm in diameter with a weight of 0.05 lb. It complies with UL Recognized Component, CSA Certified, and IEC 269-4 standards, ensuring consistent performance in demanding industrial applications such as motor branch circuits, feeder protection, and industrial control panels.

Key Features & Specifications

• Type: Amp-Trap A70QS, Low Voltage Current-Limiting Fuse, Single Barrel, Ferrule Connection
• Voltage Rating: 690V AC
• Current Rating: 50A
• Dimensions: 14mm Diameter
• Standards: UL Recognized Component, CSA Certified, IEC 269-4 Compliance
• Applications: Motor Branch Circuits, Feeder Protection, Industrial Control Panels
• AIC rating: 200kA @ 690V
• Weight: 0.05 lb
• Connection: Ferrule
• Barrels: 1
• Family: Amp-Trap
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 78200114205
• GTIN: 00782001142056
