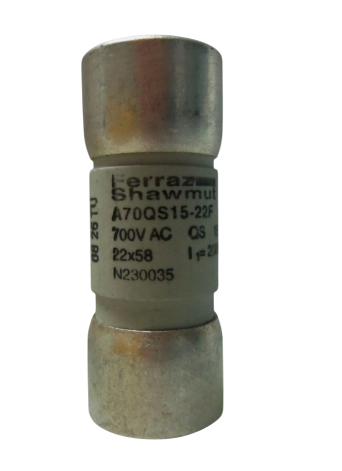

American/Federal Pacific A70QS15-22F - Low Voltage Current-Limiting Fuse 15A (200kA AIC @ 690V)

The American/Federal Pacific A70QS15-22F is a low voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 15A current rating and 690V AC voltage rating with an impressive 200kA interrupting capacity at its rated voltage. The fuse utilizes a single-barrel ferrule connection design with a 22mm diameter and weighs 1 lb, constructed for durable performance in demanding environments. This fuse complies with relevant industry standards for safety and performance in electrical protection applications. Typical applications include motor branch circuit protection, transformer protection, and feeder circuit protection where high fault current interruption is critical.

Key Features & Specifications

• Type: Low Voltage Current-Limiting Fuse, Amp-Trap Family, Single Barrel Ferrule Connection
• Voltage Rating: 690V AC
• Current Rating: 15A
• Dimensions: 22mm Diameter
• Standards: Industry Standard Compliance for Electrical Protection
• Applications: Motor Branch Circuit Protection, Transformer Protection, Feeder Circuit Protection
• AIC Rating: 200kA @ 690V
• Connection: Ferrule
• Barrels: 1
• Weight: 1 lb
• Family: Amp-Trap
• Fuse Class: A70QS

Product Identification

• UPC: 78200135885
• GTIN: 00782001358853
