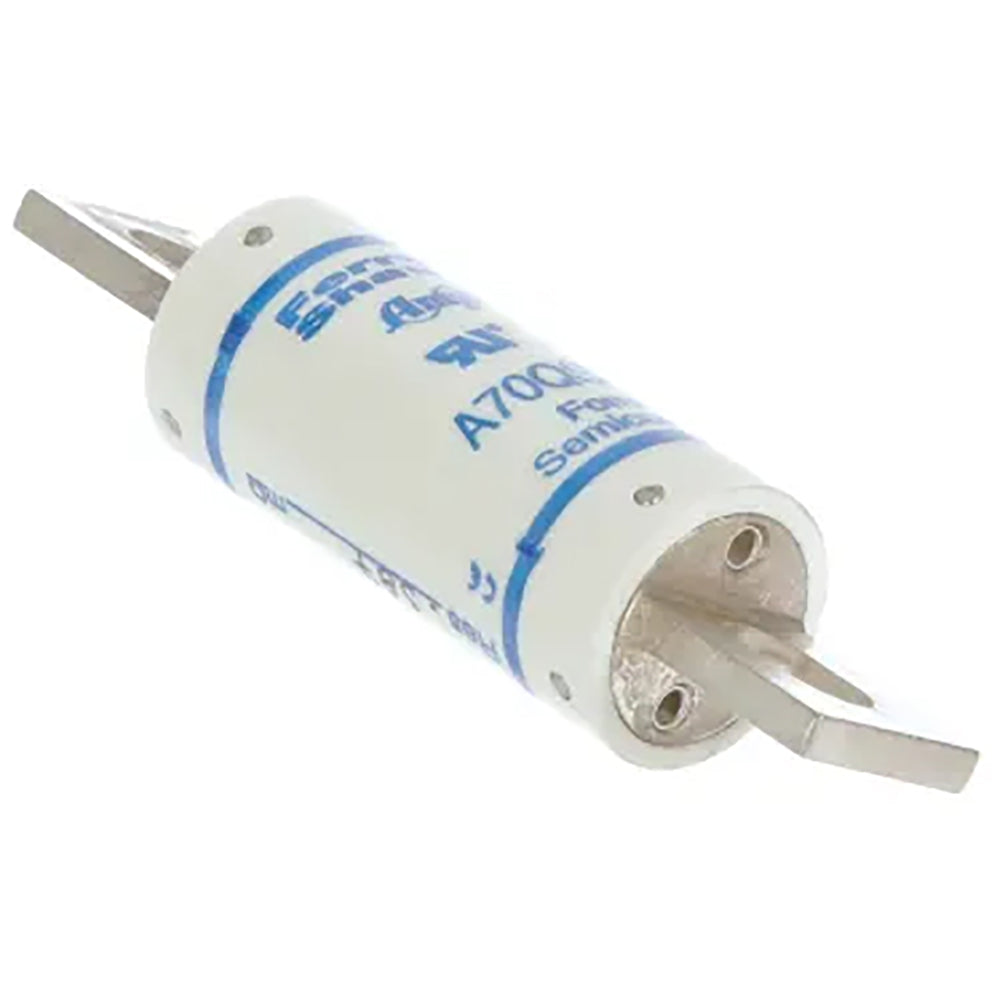

Mersen A70QS100-22F - Low Voltage Fuse 690V/100A (200kA AIC)

Mersen A70QS100-22F is a low-voltage current-limiting fuse designed for industrial circuit protection with high interrupting capacity. The fuse features a 690V AC rating and 100A current capacity, housed in a compact 22mm diameter ferrule-connected barrel construction. Its UL-recognized, CSA-certified design meets IEC 269-4 standards for reliable operation in demanding environments. The 200kA@690V AIC rating makes it suitable for protecting motors, transformers, and distribution panels in commercial power systems.

Key Features & Specifications

• Type: Amp-Trap A70QS current-limiting fuse with ferrule termination
• Voltage Rating: 690V AC
• Current Rating: 100A
• Dimensions: 22mm diameter single-barrel design
• Standards: UL Recognized Component, CSA Certified, IEC 269-4 compliant
• Applications: Motor circuits, transformer protection, industrial power distribution
• AIC rating: 200kA@690V
• Connection: Ferrule
• Barrels: 1
• Weight: 1 lb

Product Identification

• UPC: 78200114213
• GTIN: 00782001142131
