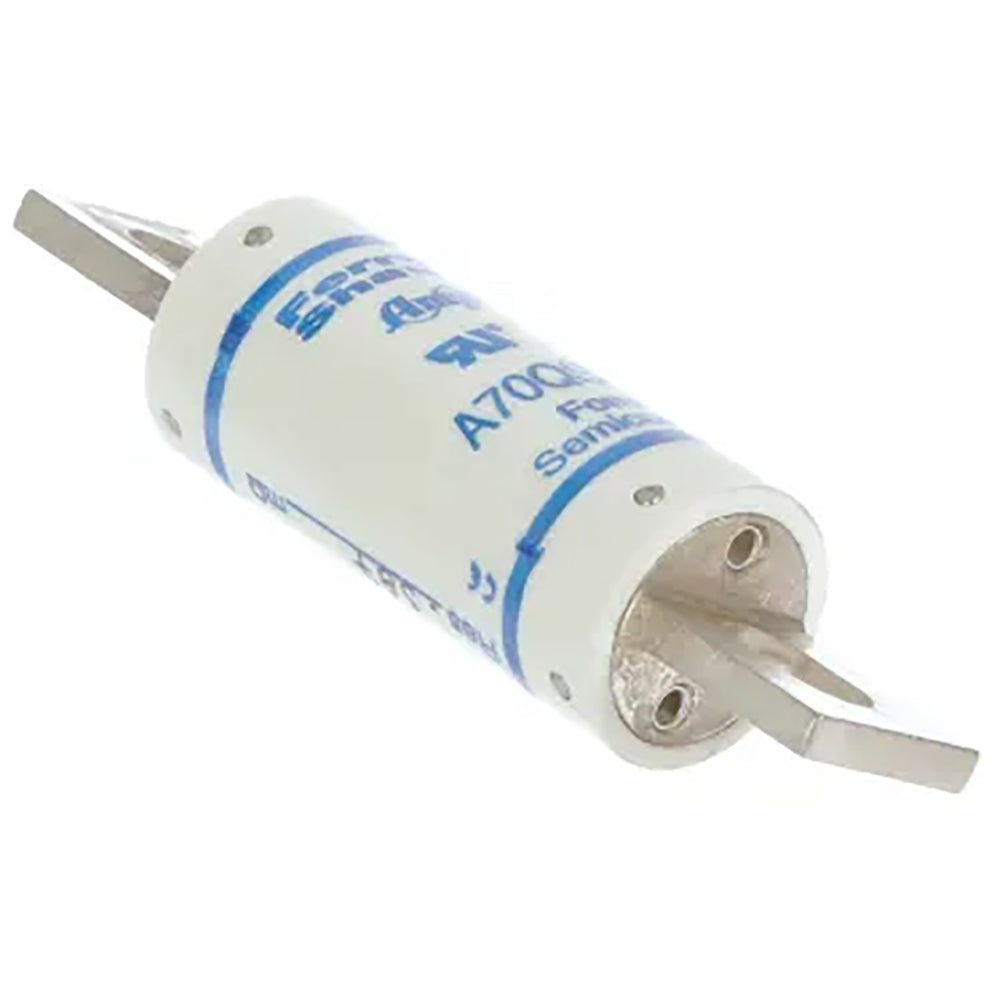

Cutler Hammer A70QS10-14F - Low Voltage Current-Limiting Fuse 10A (200kA AIC @ 690V)

Cutler Hammer
Price
Save $1,311.48
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer A70QS10-14F is a low voltage current-limiting fuse from the Amp-Trap family designed to provide superior short-circuit protection in industrial electrical systems. It features a 10A current rating and a 690V voltage rating, enabling reliable operation under demanding conditions. The fuse is constructed with a 14mm diameter ferrule connection and a single barrel design with an overall length of 51mm, weighing only 0.05 lb for compact installation. This component is UL and CSA certified and delivers a 200kA interrupting rating at 690V, ensuring compliance with rigorous safety standards. Typical applications include protection for motor circuits, transformers, and feeder circuits where high fault current interruption is critical.

Key Features & Specifications
  • Type: Low Voltage Current-Limiting Fuse, Amp-Trap Family, Ferrule Connection, Single Barrel
  • Voltage Rating: 690V AC
  • Current Rating: 10A
  • Dimensions: 51 mm Length, 14 mm Diameter
  • Weight: 0.05 lb
  • Standards: UL Certified, CSA Certified
  • AIC Rating: 200kA @ 690V
  • Connection: Ferrule
  • Barrels: 1
  • Certification: UL Certified; CSA Certified
  • Family: Amp-Trap
  • Country of Origin: Tunisia


Product Identification
  • UPC: 78200114198
  • GTIN: 00782001141981
