Cutler Hammer A70Q70-4 - Amp-Trap Class A70Q Fuse 70A (100kA@700V AIC)
Cutler Hammer A70Q70-4 - Amp-Trap Class A70Q Fuse 70A (100kA@700V AIC)
Cutler Hammer A70Q70-4 - Amp-Trap Class A70Q Fuse 70A (100kA@700V AIC)
Cutler Hammer A70Q70-4 - Amp-Trap Class A70Q Fuse 70A (100kA@700V AIC)
Cutler Hammer A70Q70-4 - Amp-Trap Class A70Q Fuse 70A (100kA@700V AIC)
Cutler Hammer A70Q70-4 - Amp-Trap Class A70Q Fuse 70A (100kA@700V AIC)

Cutler Hammer A70Q70-4 - Amp-Trap Class A70Q Fuse 70A (100kA@700V AIC)

Cutler Hammer
Price
Save $2,148.59
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

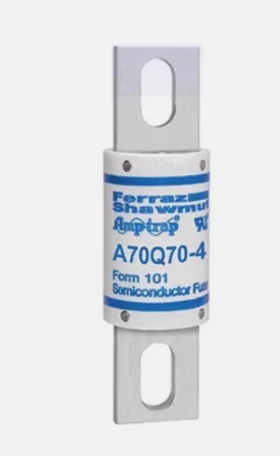

The Cutler Hammer A70Q70-4 is a low voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical systems. It features a 70A current rating and a 700V AC voltage rating, with an impressive 100kA interrupting capacity at its rated voltage to safely clear high-level faults. The fuse is constructed as a single-barrel design with a 1.22-inch diameter and 4.37-inch length, providing a robust form factor for industrial applications. It complies with major industry standards, including UL recognition under Guide JFHR2 (File E60314) and CE certification, ensuring reliable performance. This fuse is typically applied in industrial control circuits, motor branch circuits, and feeder protection where current limitation and high interrupting ratings are critical.

Key Features & Specifications
  • Type: Amp-Trap Class A70Q low voltage current-limiting fuse, single barrel
  • Voltage Rating: 700V AC
  • Current Rating: 70A
  • Dimensions: 4.37 inches in length, 1.22 inches in diameter
  • Weight: 5.19 lb
  • Standards: UL Recognized (Guide JFHR2, File E60314), CE
  • Applications: Industrial control circuits, motor branch circuits, feeder protection
  • AIC rating: 100kA @ 700V AC
  • Certification: CE, UL Recognized
  • Barrels: 1
  • Family: Amp-Trap
  • Country of Origin: Mexico


Product Identification
  • UPC: 782001141103
  • GTIN: 00782001141103
