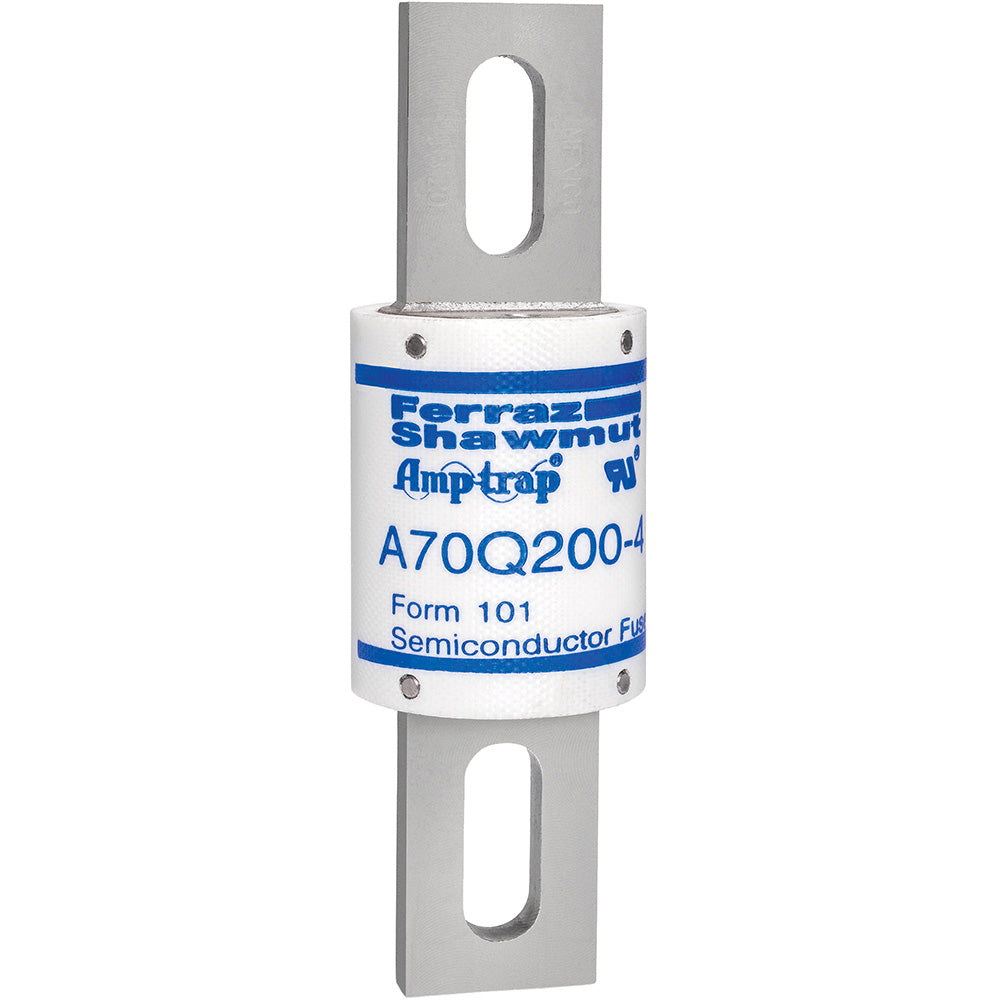

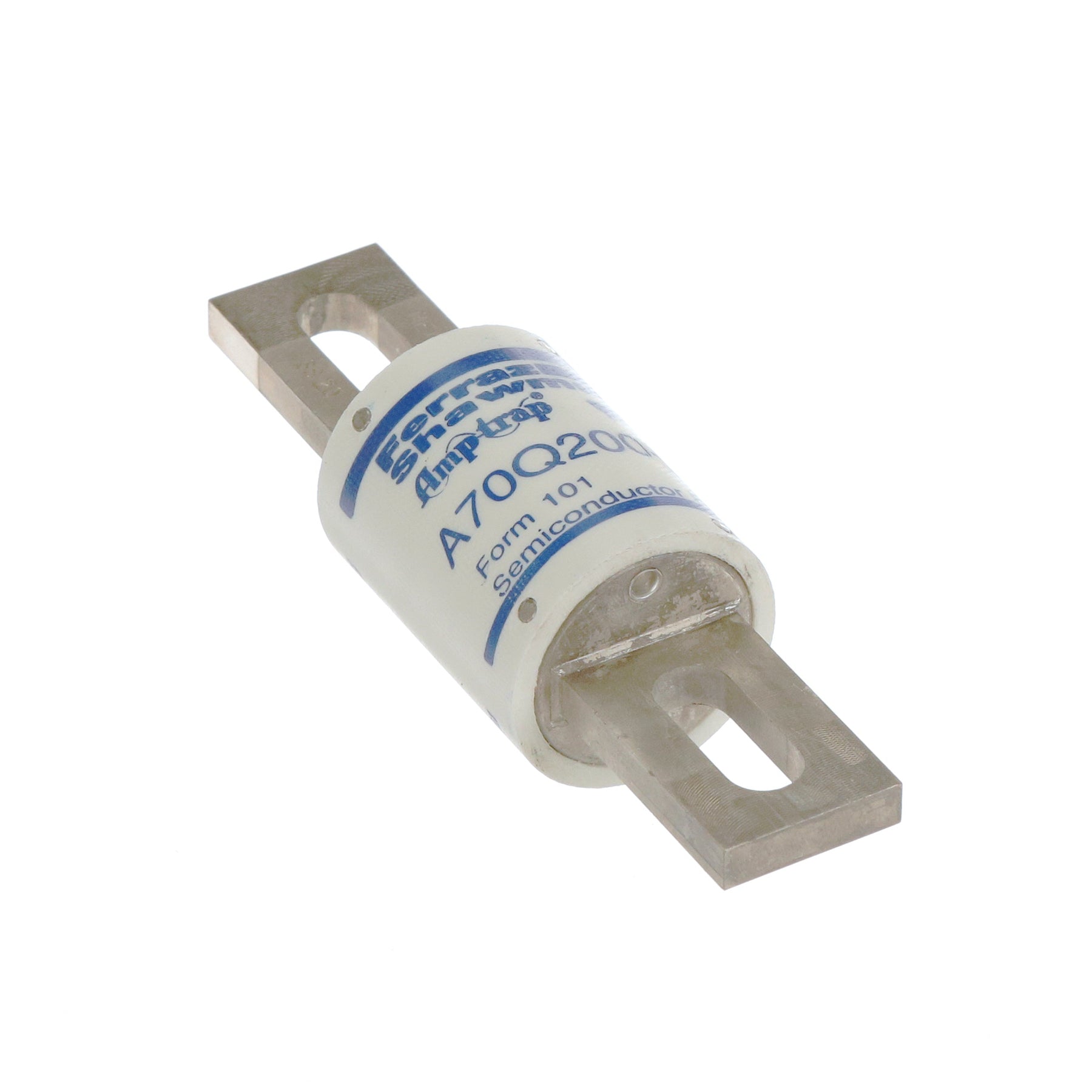

Ferraz Shawmut A70Q200-4 - Low Voltage Fuse 200A (100kA@700V Interrupt Rating)

Ferraz Shawmut A70Q200-4 is a low-voltage current-limiting fuse designed for industrial circuit protection up to 700V AC systems. The 200A-rated fuse features a single-barrel construction with a 1.5-inch diameter and 5.09-inch length, weighing 0.6 lb, capable of interrupting 100kA short-circuit currents. It meets CE and UL standards (Guide JFHR2, File E60314) for safety compliance in demanding environments. Typical applications include motor control centers, switchgear, and power distribution panels requiring high interrupting capacity protection.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse with single-barrel design
• Voltage Rating: 700V AC
• Current Rating: 200A
• Dimensions: 5.09 in length x 1.5 in diameter
• Weight: 0.6 lb
• Standards: CE, UL Recognized (Guide JFHR2, File E60314)
• Applications: Industrial switchgear, motor protection, power distribution
• AIC rating: 100kA@700V
• Certification: UL Recognized, CE compliant
• Country of Origin: Mexico

Product Identification

• UPC: 078200114098
• GTIN: 00782001140984
