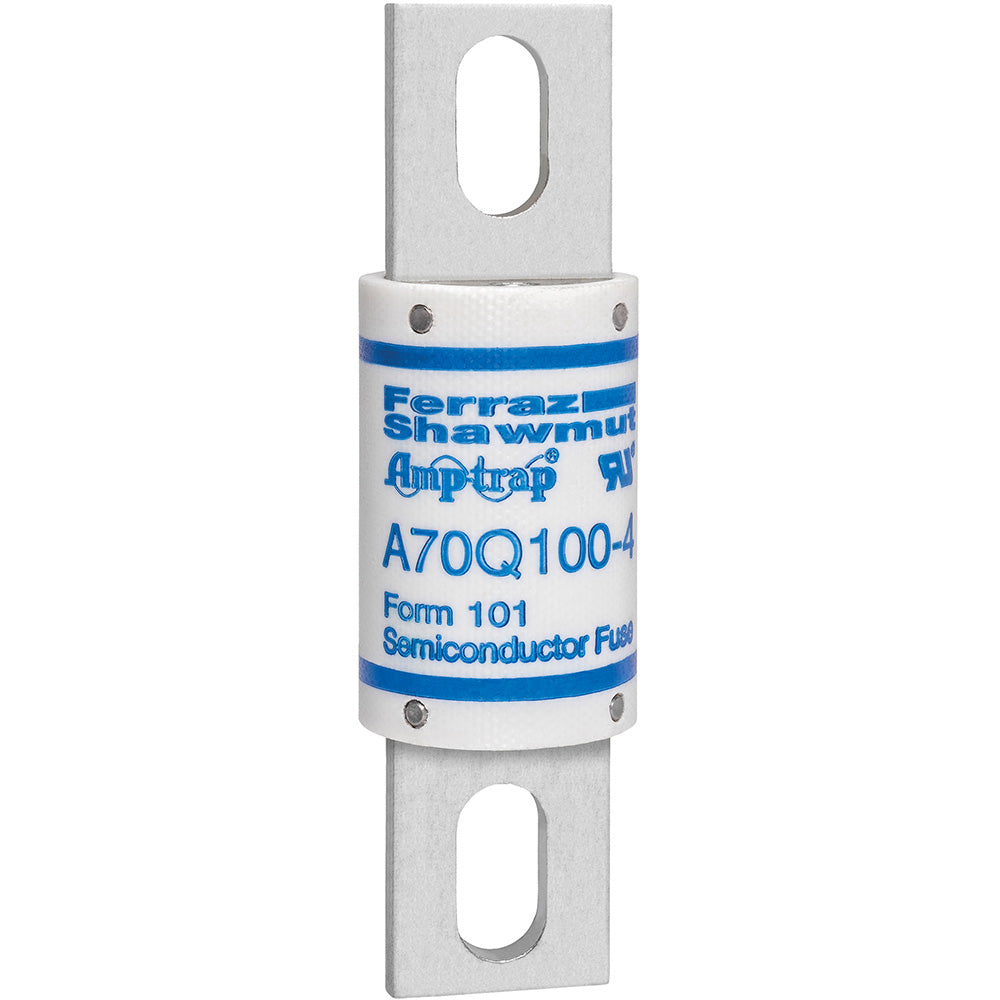

Ferraz Shawmut A70Q100-4 - Low Voltage Fuse 100A (100kA@700V Interrupting Capacity)

Ferraz Shawmut A70Q100-4 is a low-voltage current-limiting fuse designed for industrial circuit protection with a 100A current rating and 700V voltage capacity. Its 100kA interrupting rating at 700V provides robust short-circuit protection, housed in a compact 1.22-inch diameter, 4.37-inch long barrel construction weighing 0.51 lb. The fuse meets CE and UL standards (Guide JFHR2, File E60314) with UL recognition, ensuring compliance with industrial safety requirements. Typical applications include motor control centers, switchgear, and power distribution systems requiring high fault current interruption.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse, single barrel design
• Voltage Rating: 700V AC
• Current Rating: 100A
• Dimensions: 4.37" length x 1.22" diameter
• Standards: CE, UL Recognized (Guide JFHR2, File E60314)
• Applications: Industrial power distribution, motor protection, switchgear
• AIC rating: 100kA@700V
• Weight: 0.51 lb
• Certification: UL Recognized Component
• Country of Origin: Mexico

Product Identification

• UPC: 78200114094
• GTIN: 00782001140946
