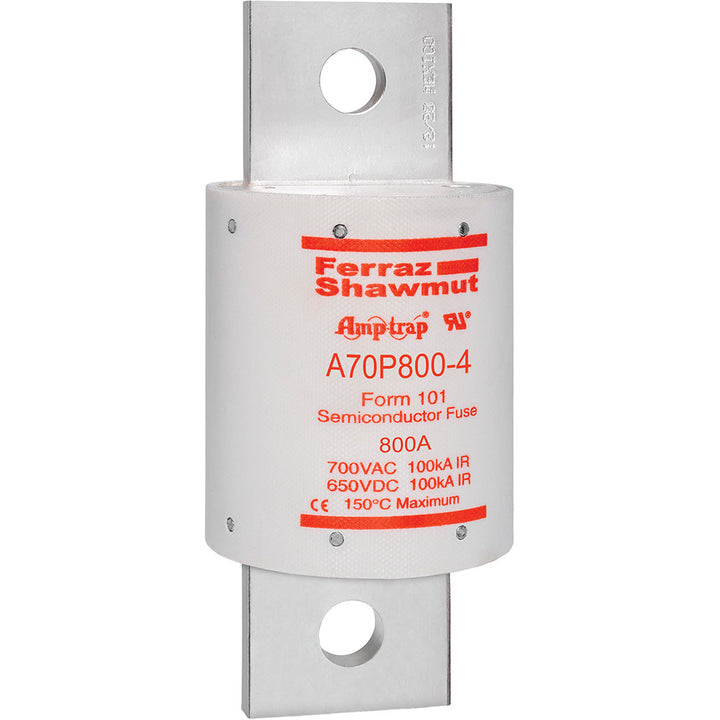

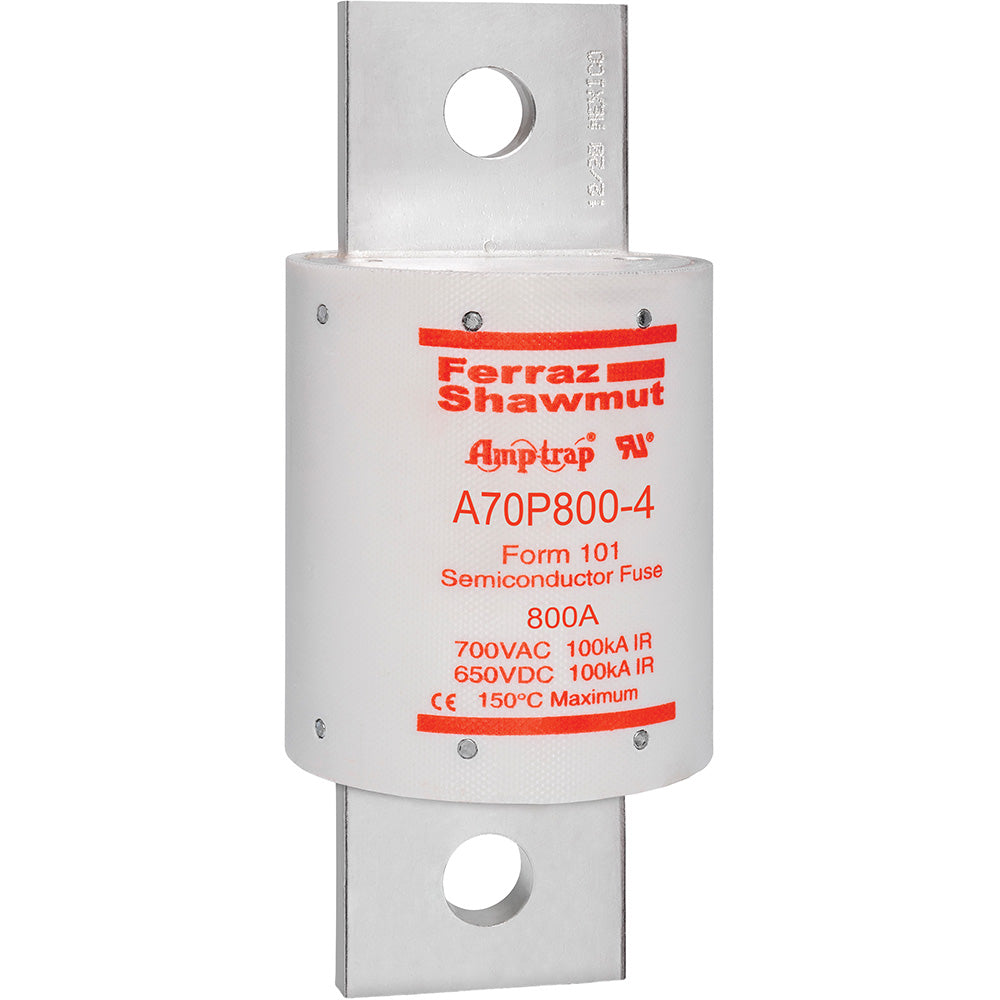

Ferraz Shawmut A70P800-4 - Low Voltage Fuse 800A (100kA@700V Interrupting Capacity)

Ferraz Shawmut A70P800-4 is a low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial power distribution systems. This 800A bolt-in blade fuse features a 700V AC rating with 100kA interrupting capacity, constructed with a durable single-barrel design measuring 6.81 inches in length and 2.88 inches in diameter. Compliant with industry safety standards, the Amp-Trap series fuse provides reliable short-circuit protection for motor control centers, switchgear, and other heavy-duty electrical equipment requiring 700V system protection.

Key Features & Specifications

• Type: A70P current-limiting low-voltage fuse with bolt-in blade connection
• Voltage Rating: 700V AC
• Current Rating: 800A
• Dimensions: 6.81" length x 2.88" diameter
• Weight: 3 lb
• Standards: UL/CSA recognized
• Applications: Motor control centers, switchgear, industrial power distribution
• AIC rating: 100kA@700V
• Connection: Bolt-In Blade
• Barrels: 1
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 782001947439
• GTIN: 00782001947439
