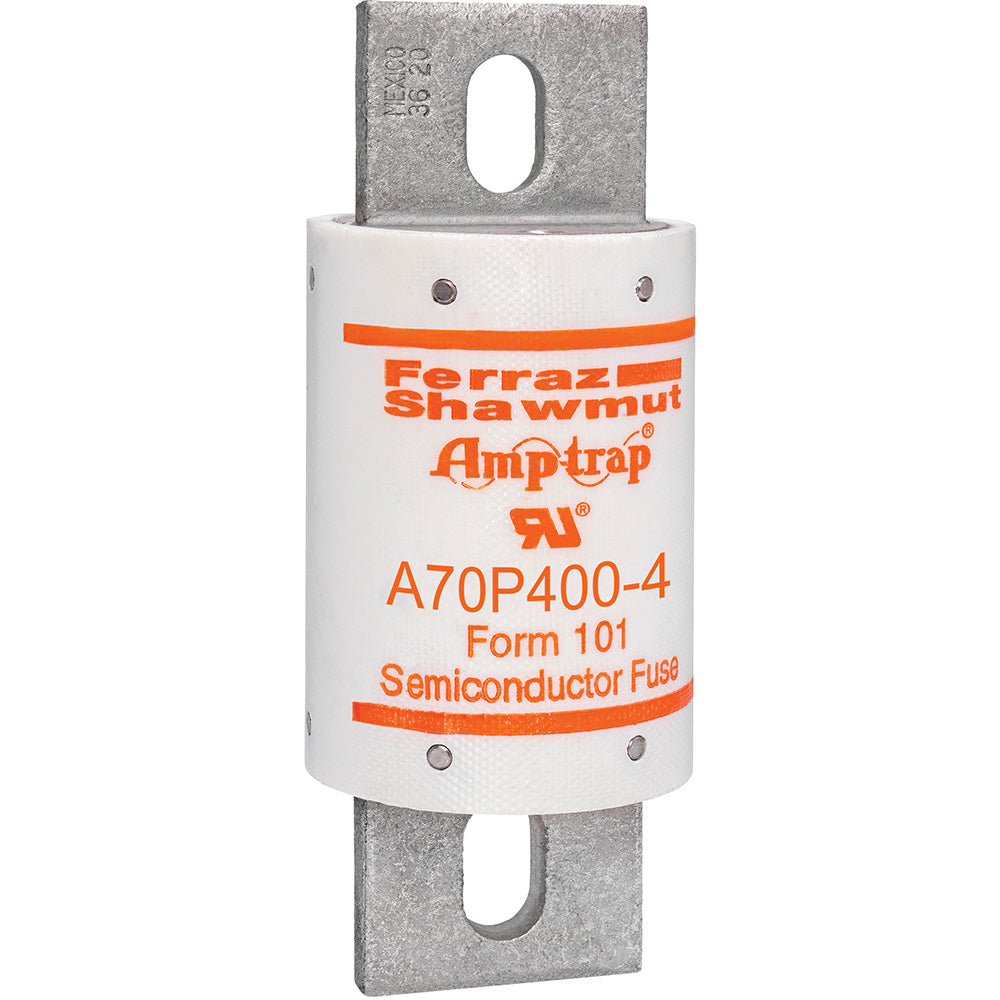

Ferraz Shawmut A70P400-4 - Low Voltage Fuse 400A (700V, 100kA AIC)

Ferraz Shawmut A70P400-4 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for robust circuit protection in industrial power distribution systems. It features a 700V AC voltage rating and 400A current rating, with a bolt-in blade connection for secure installation in compatible fuse holders. The single-barrel construction measures 2 inches in diameter and weighs 2 lb, engineered with current-limiting technology to interrupt fault currents up to 100kA at rated voltage. Compliant with industry standards for low-voltage fuses, it provides reliable overcurrent protection for motor control centers, switchgear, and other high-power electrical equipment.

Key Features & Specifications

• Type: A70P current-limiting fuse with bolt-in blade connection
• Voltage Rating: 700V AC
• Current Rating: 400A
• Dimensions: 2" diameter
• Standards: UL/CSA compliant
• Applications: Motor control centers, switchgear, power distribution
• AIC rating: 100kA@700V
• Connection: Bolt-In Blade
• Barrels: 1
• Weight: 2 lb

Product Identification

• UPC: 782001947347
• GTIN: 00782001947347
