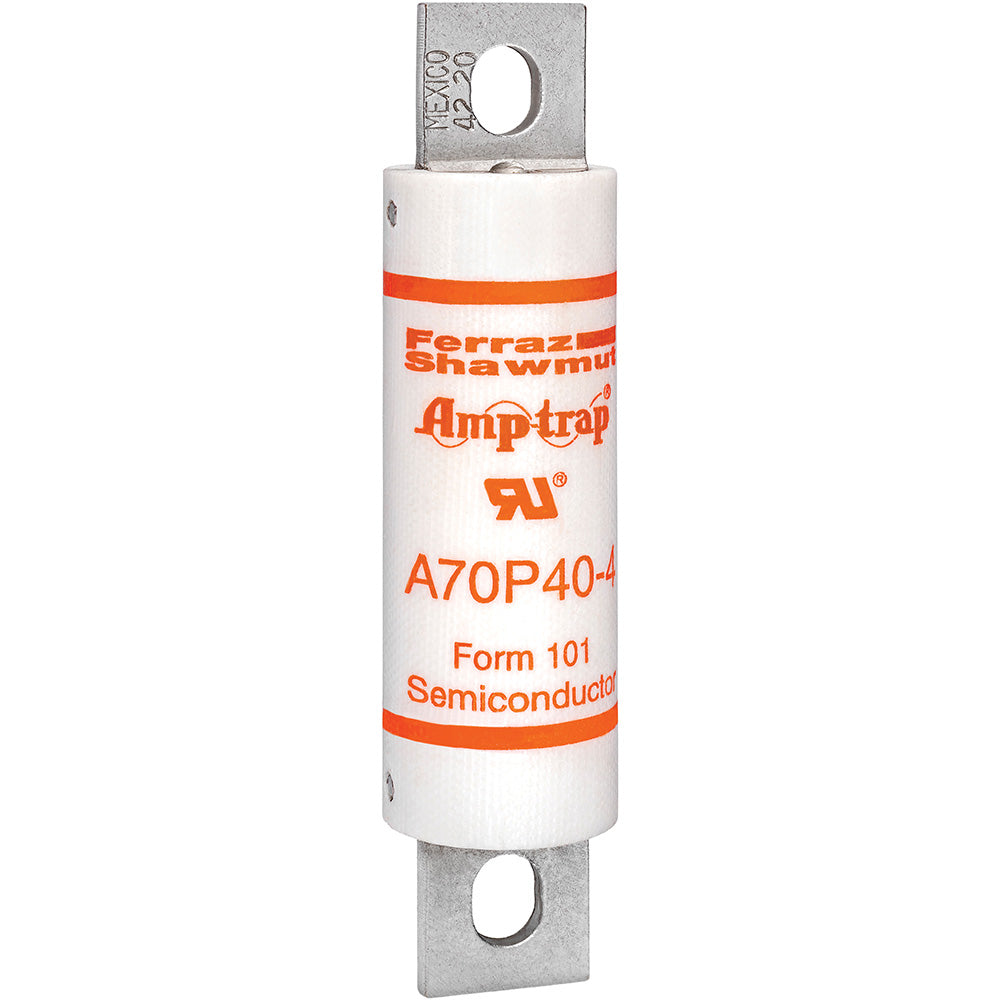

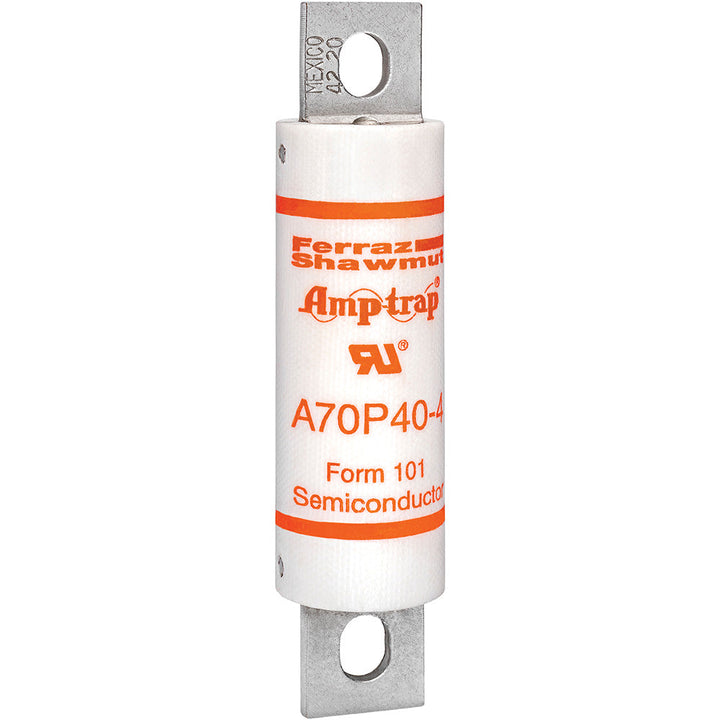

Ferraz Shawmut A70P40-4 - Low Voltage Fuse 40A@700V (100kA AIC)

Ferraz Shawmut A70P40-4 is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This 700V-rated fuse handles 40A continuous current with a 100kA interrupting capacity, featuring a compact bolt-in blade design with a 1-inch diameter and 4.38-inch length. Constructed as part of the Amp-Trap family, it meets stringent industry standards for overcurrent protection in demanding environments. Typical applications include motor control centers, switchgear, and industrial control panels where reliable short-circuit protection is critical.

Key Features & Specifications

• Type: A70P current-limiting low-voltage fuse
• Voltage Rating: 700V AC
• Current Rating: 40A
• Dimensions: 1" diameter x 4.38" length
• Weight: 0.27 lb
• Connection: Bolt-In Blade
• Barrels: 1
• AIC Rating: 100kA@700V
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, MCCs, switchgear
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 782001947149
• GTIN: 00782001947149
