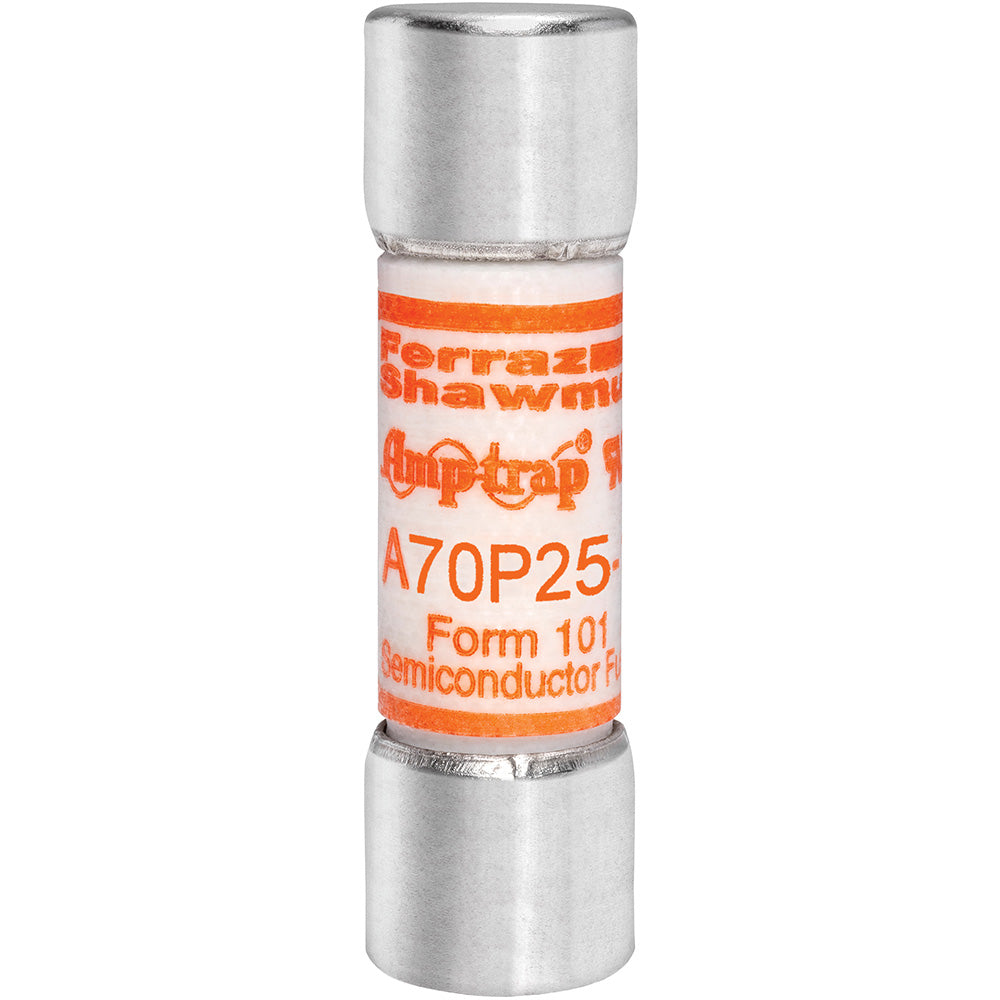

Cutler Hammer A70P25-1 - Low Voltage Fuse 25A (100kA AIC @ 700V)

The Cutler Hammer A70P25-1 is a low voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical circuits. It features a 25A current rating and a 700V AC voltage rating, capable of interrupting faults with a 100kA interrupting rating at its maximum voltage. The fuse is constructed with a single-barrel design featuring ferrule connections and measures 2 inches in length with a 0.56-inch diameter. It complies with industry standards for current-limiting fuses, making it suitable for protecting motor circuits, feeders, and branch circuits in industrial and commercial electrical systems.

Key Features & Specifications

• Type: A70P, Amp-Trap, Low Voltage Current-Limiting Fuse
• Voltage Rating: 700V AC
• Current Rating: 25A
• Dimensions: 2 in Length, 0.56 in Diameter
• Standards: Industry Standards for Current-Limiting Fuses
• Applications: Motor Circuit, Feeder, and Branch Circuit Protection
• Connection: Ferrule
• Barrels: 1
• AIC rating: 100kA@700V
• Weight: 5 lb

Product Identification

• UPC: 782001947118
• GTIN: 00782001947118
