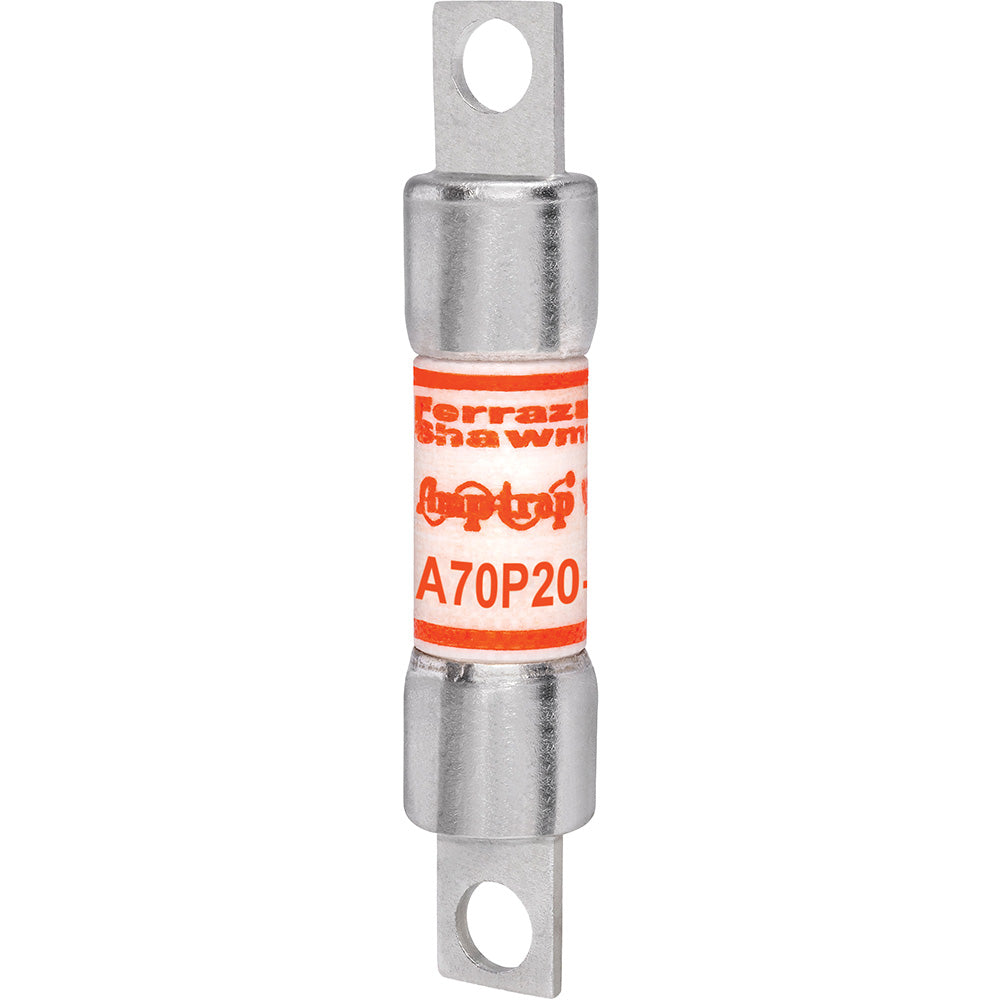

Ferraz Shawmut A70P20-4 - Low Voltage Fuse 20A@700V (100kA AIC Bolt-In Blade)

Ferraz Shawmut A70P20-4 is a low-voltage fuse designed for circuit protection in industrial power distribution systems. This Amp-Trap series fuse features a 700V AC rating with a 20A current capacity, housed in a compact 0.56-inch diameter bolt-in blade configuration. Its single-barrel construction provides 100kA interrupting capacity at rated voltage, meeting stringent protection requirements for electrical equipment. The fuse complies with industrial safety standards for overcurrent protection in demanding environments. Typical applications include motor control centers, transformers, and power distribution panels where high fault current interruption is critical.

Key Features & Specifications

• Type: A70P bolt-in blade fuse with current-limiting design
• Voltage Rating: 700V AC
• Current Rating: 20A
• Dimensions: 0.56" diameter
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, MCCs, transformers
• AIC rating: 100kA@700V
• Connection: Bolt-In Blade
• Barrels: 1
• Weight: 0.04 lb
• Family: Amp-Trap

Product Identification

• UPC: 78200194812
• GTIN: 00782001948122
