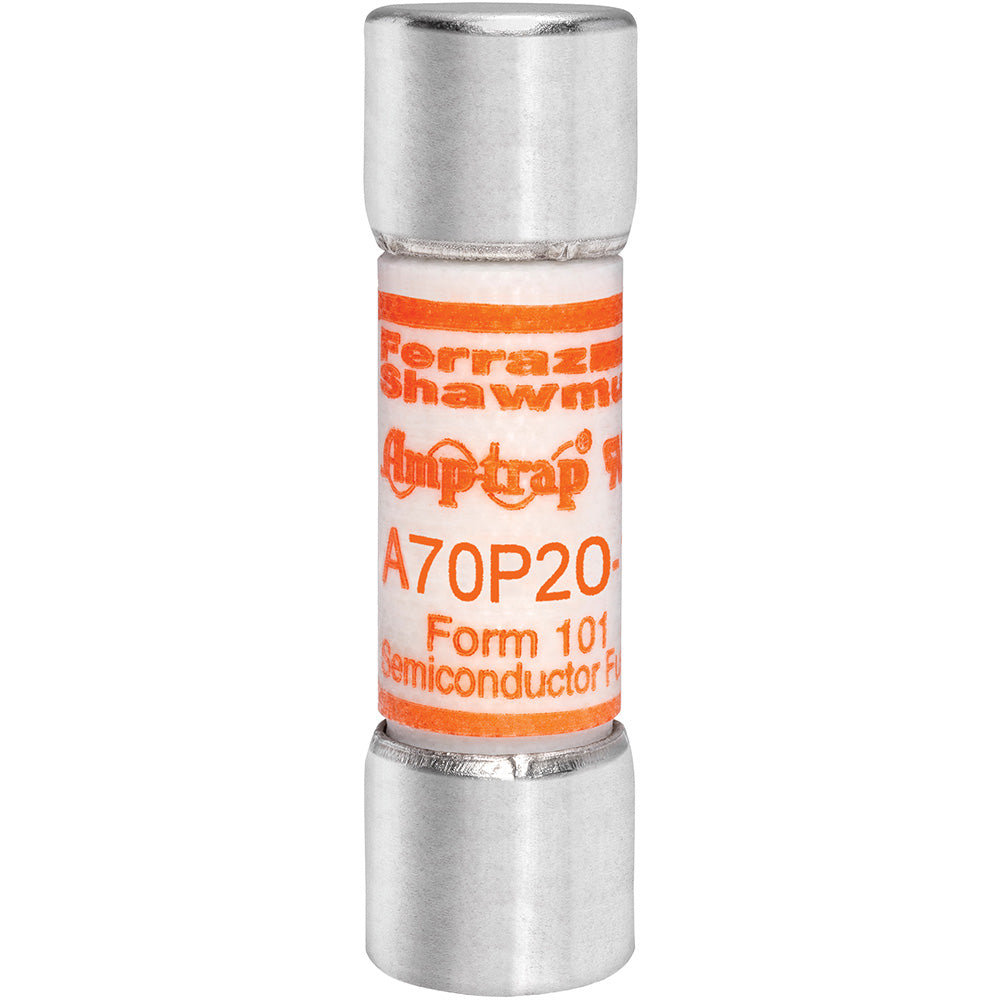

Ferraz Shawmut A70P20-1 - Low Voltage Fuse 20A 700V (100kA AIC)

Ferraz Shawmut A70P20-1 is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This Amp-Trap series fuse features a 700V AC rating and 20A current capacity with a 100kA interrupting rating at 700V for reliable short-circuit protection. Its compact ferrule design measures 0.56" in diameter with single-barrel construction, weighing 5 lb for robust performance in demanding environments. The fuse meets stringent industry standards for electrical safety and equipment protection. Typical applications include motor control centers, transformers, and power distribution panels requiring high interrupting capacity.

Key Features & Specifications

• Type: A70P current-limiting low-voltage fuse
• Voltage Rating: 700V AC
• Current Rating: 20A
• Dimensions: 0.56" diameter
• Standards: UL/CSA compliant
• Applications: Industrial power distribution, MCCs, transformers
• Connection: Ferrule
• Barrels: 1
• AIC rating: 100kA@700V
• Weight: 5 lb

Product Identification

• UPC: 782001947101
• GTIN: 00782001947101
