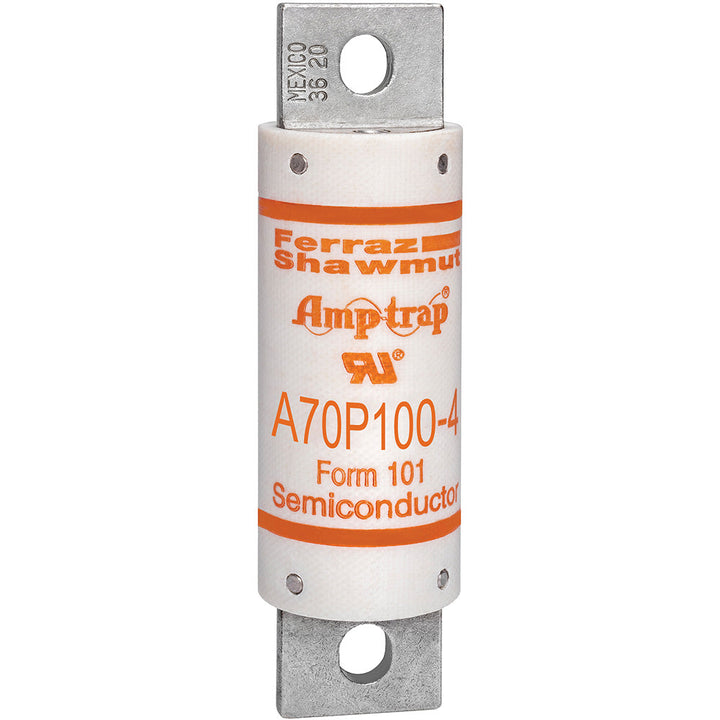

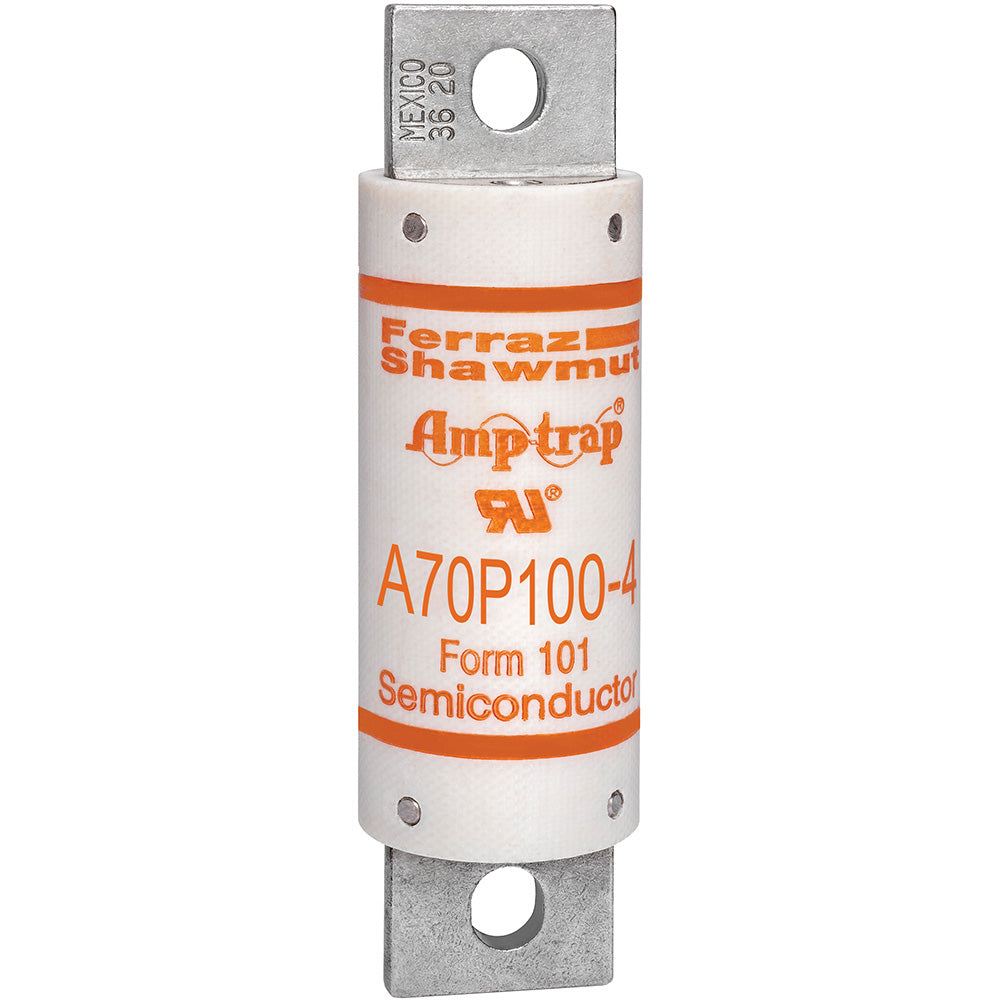

Ferraz Shawmut A70P100-4 - Low Voltage Fuse 100A (700V 100kA AIC)

Ferraz Shawmut A70P100-4 is a low-voltage current-limiting fuse designed for high-performance circuit protection in industrial power systems. This Amp-Trap series fuse features a 700V AC rating and 100A current capacity with a 100kA interrupting rating at 700V for reliable short-circuit protection. The bolt-in blade design with a 1.22" diameter barrel provides secure installation in compatible fuse holders, constructed with durable materials for harsh environments. It meets industry standards for low-voltage protection devices and is commonly used in motor control centers, switchgear, and power distribution panels requiring high interrupting capacity.

Key Features & Specifications

• Type: A70P current-limiting low-voltage fuse
• Voltage Rating: 700V AC
• Current Rating: 100A
• Dimensions: 1.22" diameter barrel
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, motor protection
• Connection: Bolt-in blade
• Barrels: 1
• AIC rating: 100kA@700V
• Weight: 5 lb

Product Identification

• UPC: 782001947255
• GTIN: 00782001947255
