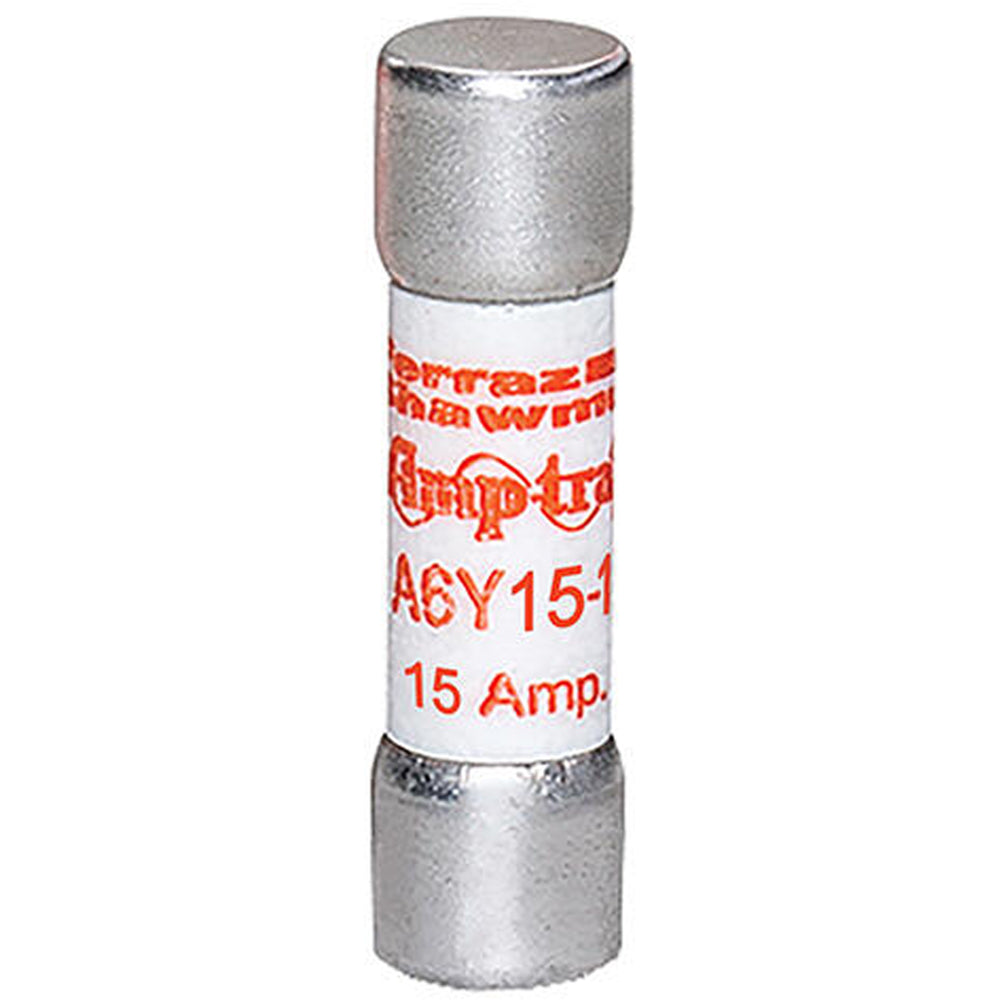

Ferraz Shawmut A6Y15-1 - Class K Fuse 15A 600V (200kA AIC)

Ferraz Shawmut A6Y15-1 is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This Class K, 600V AC-rated fuse features a 15A current rating with a 200kA interrupting capacity at 600V, housed in a compact 0.81-inch diameter ferrule-connected single-barrel design. Constructed with precision-engineered Amp-Trap technology, it provides fast-acting protection against short circuits and overloads while meeting stringent industry standards for electrical safety. Typical applications include motor control centers, panelboards, and switchgear requiring reliable overcurrent protection in demanding environments.

Key Features & Specifications

• Type: A6Y current-limiting fuse with Amp-Trap technology
• Voltage Rating: 600V AC
• Current Rating: 15A
• Diameter: 0.81 inches (20.57mm)
• Class Rating: K
• Connection: Ferrule
• Barrels: 1
• AIC rating: 200kA@600V
• Standards: UL/CSA certified
• Applications: Industrial power distribution, motor protection, switchgear

Product Identification

• UPC: 782001902407
• GTIN: 00782001902407
