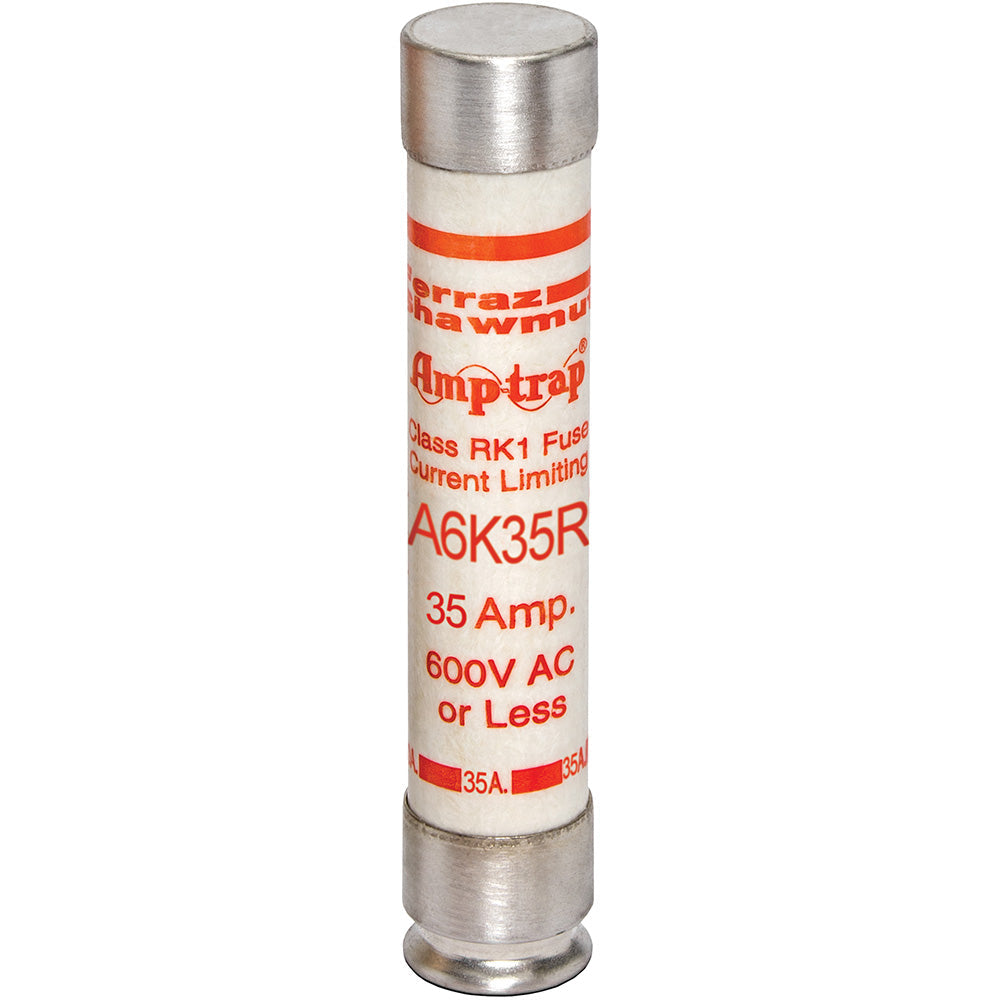

Cutler Hammer A6K35R - Class RK1 Fuse 35A 600V (200kA AIC Rating)

The Cutler Hammer A6K35R is a Class RK1 low-voltage current-limiting fuse designed to provide reliable circuit protection in industrial power distribution systems. It features a 35A current rating and 600V AC voltage rating with a high 200kA interrupting capacity at 600V for effective short-circuit protection. The fuse construction utilizes a single-barrel design measuring 1.06 inches in diameter with an overall length of 5-1/2 inches and weighs 0.34 lb, featuring current-limiting characteristics to protect against high fault currents. This RK1 class fuse meets industry standards for time-delay operation, allowing temporary overloads while providing fast response to short-circuit conditions. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where coordinated protection is required.

Key Features & Specifications

• Type: Class RK1 current-limiting time-delay fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 35A
• Dimensions: 5-1/2 inches length, 1.06 inches diameter
• Standards: UL/CSA listed, meets industry standards for RK1 classification
• Applications: Motor branch circuits, feeder protection, industrial control panels
• AIC rating: 200kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 0.34 lb
• Family: A6K-R Series
• Country of Origin: Mexico

Product Identification

• UPC: 078200191563
• GTIN: 00782001915636
