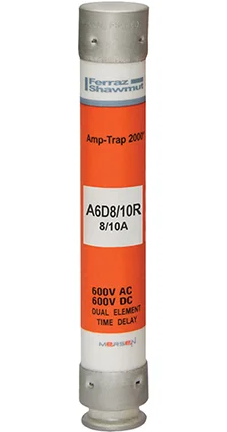

Mersen A6D8/10R - Low Voltage RK1 Fuse 8A 600V (200kA AIC Rating)

Mersen A6D8/10R is a low voltage current-limiting fuse designed for comprehensive circuit protection in industrial power distribution systems. This RK1 class fuse features a 600V AC/DC voltage rating and 8A current rating with a high interrupting capacity of 200kA at 600V, providing reliable short-circuit protection. The single-barrel construction measures 5 inches in length with a 0.81-inch diameter and weighs 5.19 lb, built with robust materials for demanding environments. Certified to CSA C22.2 No. 248.12, DC UL 248, and UL 248-12 standards (File E2137), this Amp-Trap 2000 series fuse meets rigorous safety requirements for industrial applications including motor control centers, panelboards, and switchgear protection.

Key Features & Specifications

• Type: Low Voltage Current-Limiting Fuse, RK1 Class, Single Barrel
• Voltage Rating: 600V AC/DC
• Current Rating: 8A
• Dimensions: 5" Length x 0.81" Diameter
• Weight: 5.19 lb
• Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
• Applications: Industrial power distribution, motor control centers, panelboards, switchgear
• AIC rating: 200kA@600V
• Class Rating: RK1
• Barrels: 1
• Family: Amp-Trap 2000
• Country of Origin: Mexico

Product Identification

• UPC: 782001991579
• GTIN: 00782001991579
