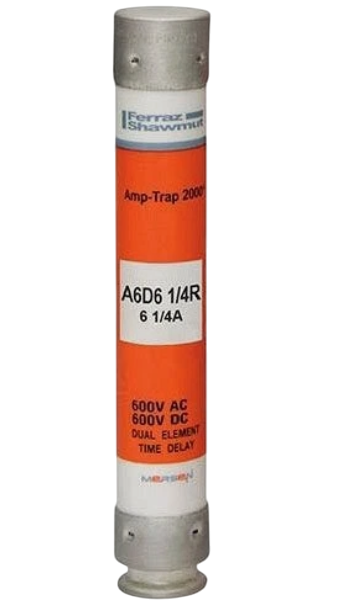

Mersen A6D6-1/4R - RK1 Time-Delay Fuse 6A 600V (200kA AIC)

Mersen A6D6-1/4R is a low-voltage RK1 time-delay fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 6A current rating with a 200kA interrupting capacity at 600V for reliable overcurrent protection. The fuse measures 5" in length with a 0.56" diameter barrel construction and weighs 0.14 lb, meeting CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137). Its time-delay characteristics make it suitable for motor circuits, transformers, and other inductive loads requiring inrush current tolerance.

Key Features & Specifications

• Type: RK1 time-delay fuse with single barrel design
• Voltage Rating: 600V AC/DC
• Current Rating: 6A
• Dimensions: 5" length x 0.56" diameter
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Motor circuits, transformers, industrial control panels
• Class Rating: RK1
• AIC rating: 200kA@600V
• Weight: 0.14 lb
• Country of Origin: Mexico

Product Identification

• UPC: 78200199176
• GTIN: 00782001991760
