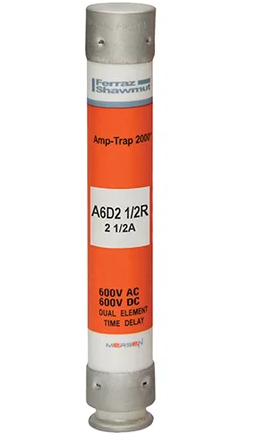

Mersen A6D2-1/2R - RK1 Class Fuse 2A 600V (200kA AIC Rating)
Mersen A6D2-1/2R - RK1 Class Fuse 2A 600V (200kA AIC Rating)
Mersen A6D2-1/2R - RK1 Class Fuse 2A 600V (200kA AIC Rating)
Mersen A6D2-1/2R - RK1 Class Fuse 2A 600V (200kA AIC Rating)
Mersen A6D2-1/2R - RK1 Class Fuse 2A 600V (200kA AIC Rating)
Mersen A6D2-1/2R - RK1 Class Fuse 2A 600V (200kA AIC Rating)

Mersen A6D2-1/2R - RK1 Class Fuse 2A 600V (200kA AIC Rating)

Mersen
Price
Save $1,275.96
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Mersen A6D2-1/2R is a current-limiting fuse from the Amp-Trap 2000 family designed to provide superior short-circuit protection in low voltage electrical systems. It features a 600V AC/DC voltage rating with a 2A current rating and offers a high 200kA interrupting capacity at 600V. The fuse construction includes a single-barrel design with 0.81-inch diameter and 5-inch length, weighing 0.14 lb, utilizing RK1 class time-delay characteristics for motor circuit protection. This fuse meets rigorous industry standards including CSA C22.2 No. 248.12, UL 248, and UL 248-12 (File E2137) certifications. Typical applications include industrial motor control centers, branch circuit protection, and electrical distribution equipment where reliable current limitation is critical.

Key Features & Specifications
  • Type: Current-limiting time-delay fuse, RK1 class, single barrel construction
  • Voltage Rating: 600V AC/DC
  • Current Rating: 2A
  • Dimensions: 5" length, 0.81" diameter
  • Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
  • Applications: Motor circuit protection, industrial control systems, electrical distribution
  • AIC rating: 200kA@600V
  • Class Rating: RK1
  • Barrels: 1
  • Weight: 0.14 lb
  • Family: Amp-Trap 2000
  • Country of Origin: Mexico


Product Identification
  • UPC: 782001991661
  • GTIN: 00782001991661
