Cutler Hammer A6D17-1/2R - RK1 Class Fuse 17A 600V (200kA AIC Rating)
Cutler Hammer A6D17-1/2R - RK1 Class Fuse 17A 600V (200kA AIC Rating)
Cutler Hammer A6D17-1/2R - RK1 Class Fuse 17A 600V (200kA AIC Rating)
Cutler Hammer A6D17-1/2R - RK1 Class Fuse 17A 600V (200kA AIC Rating)

Cutler Hammer A6D17-1/2R - RK1 Class Fuse 17A 600V (200kA AIC Rating)

Cutler Hammer
Price
Save $23.01
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

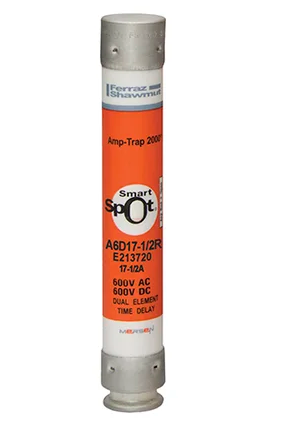

Cutler Hammer A6D17-1/2R is a low voltage current-limiting fuse from the Amp-Trap 2000 family, engineered to provide superior short-circuit protection for electrical circuits and equipment. It features a 17A current rating and a 600V AC/DC voltage rating, capable of interrupting up to 200kA of fault current. The fuse is constructed as a single-barrel RK1 class device with a 0.81-inch diameter and a 5-inch length, weighing 5 lb for robust industrial use. It complies with industry standards including CSA C22.2 No. 248.12 and UL 248-12, ensuring reliable performance in demanding applications such as motor branch circuits, feeders, and industrial control panels.

Key Features & Specifications
  • Type: A6D-R, Amp-Trap 2000, Low Voltage Current-Limiting Fuse, Single Barrel
  • Voltage Rating: 600V AC/DC
  • Current Rating: 17A
  • Dimensions: 5" Length, 0.81" Diameter
  • Weight: 5 lb
  • Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
  • Applications: Motor Branch Circuits, Feeders, Industrial Control Panels
  • AIC rating: 200kA @ 600V
  • Class Rating: RK1
  • Barrels: 1
  • Certification: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
  • Country of Origin: Mexico


Product Identification
  • UPC: 782001991838
  • GTIN: 00782001991838
