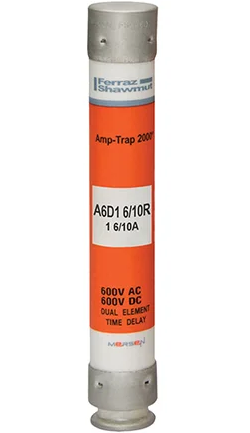

Mersen A6D1-6/10R - Low Voltage Fuse 1A 600V (RK1 Class 200kA AIC)

Mersen A6D1-6/10R is a low voltage current-limiting fuse designed for comprehensive circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating with a 1A current rating, providing reliable overcurrent protection. The fuse construction includes a single-barrel design measuring 5 inches in length with a 0.81-inch diameter and weighs 0.14 lb, featuring an RK1 class rating for time-delay characteristics. It complies with CSA C22.2 No. 248.12, DC UL 248, and UL 248-12 File E2137 standards, ensuring industry-recognized safety and performance. Typical applications include motor branch circuits, transformers, and industrial control panels where high interrupting capacity is required.

Key Features & Specifications

• Type: Low voltage current-limiting fuse, time-delay RK1 class, single barrel design
• Voltage Rating: 600V AC/DC
• Current Rating: 1A
• Dimensions: 5" length, 0.81" diameter
• Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
• Applications: Motor branch circuits, transformers, industrial control panels
• AIC rating: 200kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 0.14 lb
• Family: Amp-Trap 2000
• Country of Origin: Mexico

Product Identification

• UPC: 782001991623
• GTIN: 00782001991623
