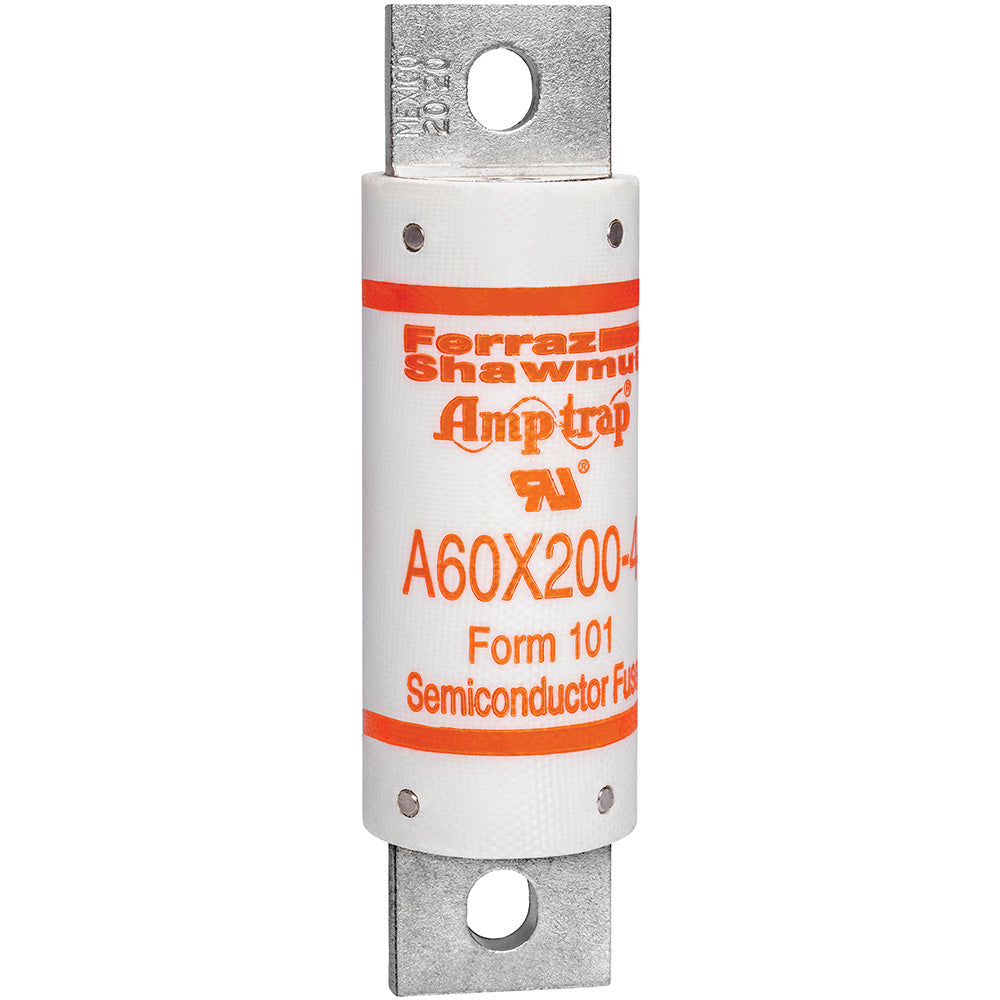

Ferraz Shawmut A60X200-4 - Low Voltage Fuse 200A@600V (100kA AIC Rating)

Ferraz Shawmut A60X200-4 is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. It features a 600V AC rating and 200A current capacity with a 100kA interrupting rating at 600V for reliable fault protection. The fuse measures 4.41 inches in length with a 1.22-inch diameter and features a single-barrel construction weighing 1 lb. Certified to UL standards (File E60314) and CE marked, it complies with Guide JFHR2 for industrial applications. Typical uses include motor branch circuits, transformer protection, and feeder protection in commercial/industrial facilities.

Key Features & Specifications

• Type: A60X Amp-Trap current-limiting fuse with ceramic body
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 4.41" length x 1.22" diameter
• Standards: UL Recognized (File E60314), CE, Guide JFHR2
• Applications: Motor protection, transformers, feeders
• AIC rating: 100kA@600V
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001943318
• GTIN: 00782001943318
