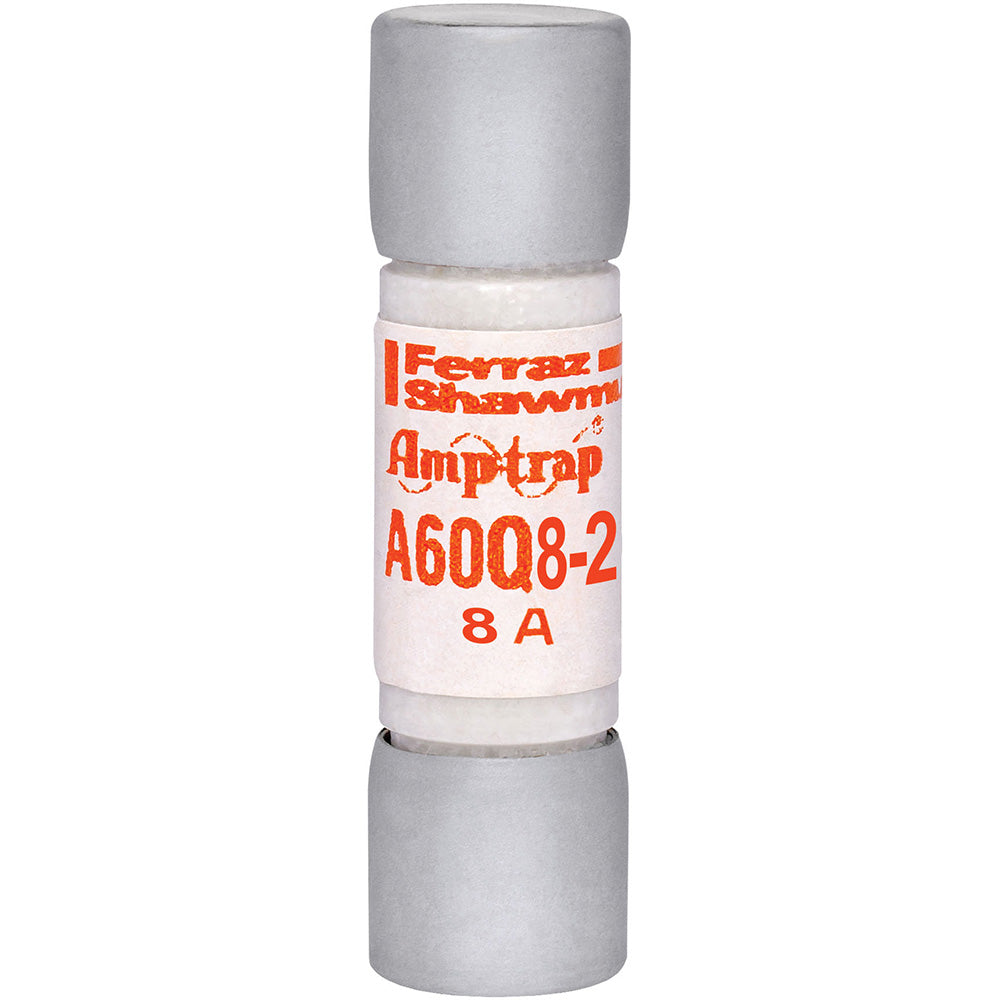

Ferraz Shawmut A60Q8-2 - Low Voltage Fuse 8A 600V (200kA AIC)

Ferraz Shawmut A60Q8-2 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with an 8A current capacity and 200kA interrupting rating, housed in a compact ferrule-connected design measuring 1-1/2 inches long with 0.41-inch diameter. The fuse meets CE and UL standards (Guide JFHR2, File E60314) with single-barrel construction for reliable overcurrent protection in motor control centers, switchgear, and power distribution applications.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 8A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: CE, UL Recognized (Guide JFHR2, File E60314)
• Applications: Motor controls, switchgear, power distribution
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Certification: UL Recognized

Product Identification

• UPC: 78200194906
• GTIN: 00782001949068
