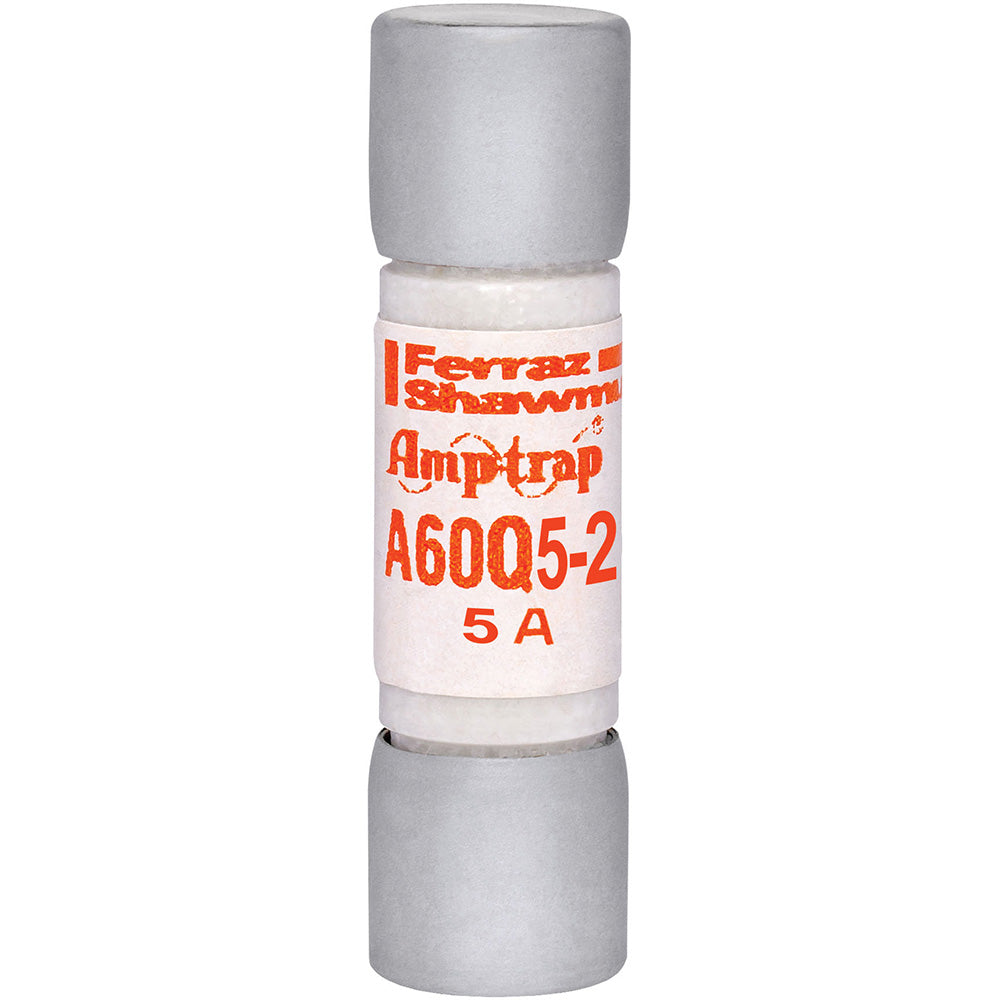

Ferraz Shawmut A60Q5-2 - Low Voltage Fuse 5A 600V (200kA AIC)

Ferraz Shawmut A60Q5-2 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 5A current capacity and 200kA interrupting capacity, housed in a compact ferrule-connected design measuring 1-1/2 inches long with a 0.41-inch diameter. The fuse meets CE and UL standards (Guide JFHR2, File E60314) with its current-limiting construction that rapidly interrupts fault currents. Typical applications include motor control centers, transformers, and power distribution equipment requiring reliable short-circuit protection.

Key Features & Specifications

• Type: A60Q series current-limiting fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 5A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Weight: 0.02 lb
• Standards: CE, UL Recognized (Guide JFHR2, File E60314)
• Applications: Industrial circuit protection, motor controls, power distribution
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Certification: CE, UL Recognized

Product Identification

• UPC: 78200194907
• GTIN: 00782001949075
