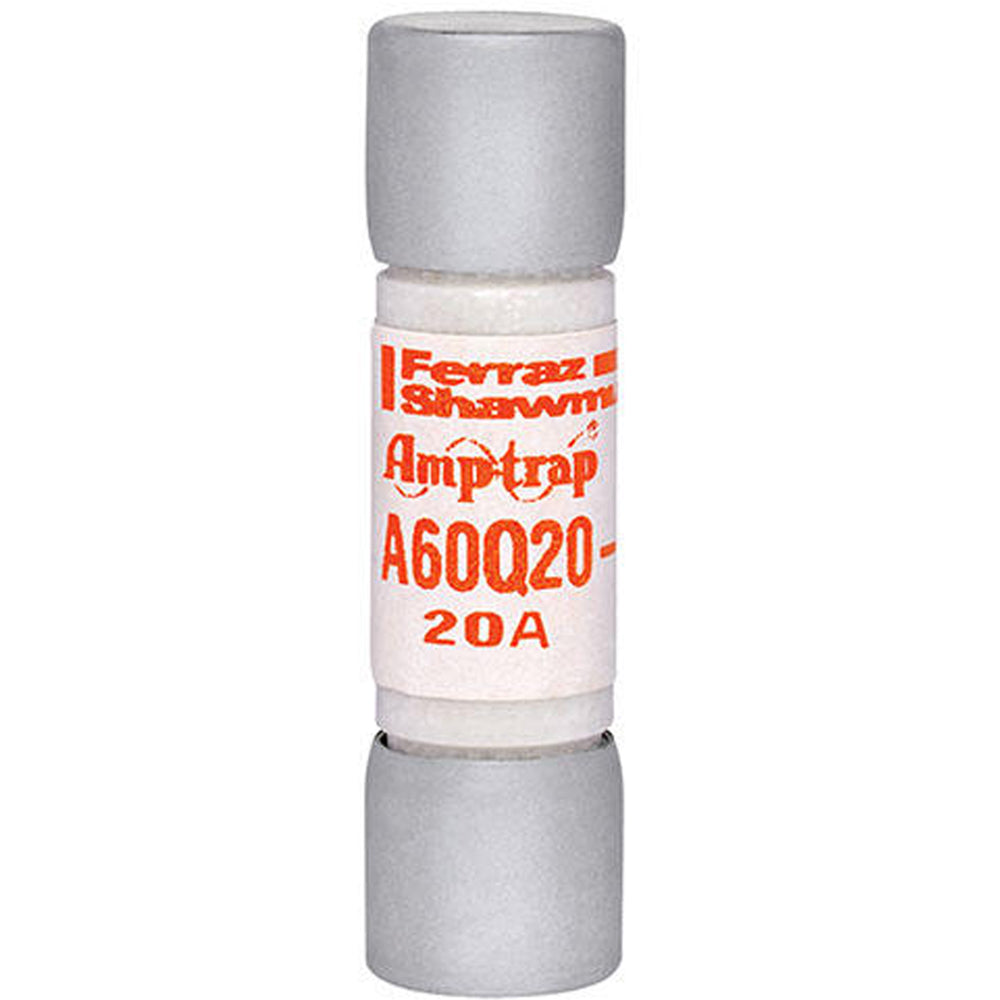

Ferraz Shawmut A60Q20-2 - Low Voltage Fuse 600V/20A (200kA AIC)

Ferraz Shawmut A60Q20-2 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This 600V-rated fuse features a 20A current rating and 200kA interrupting capacity, housed in a compact ferrule-connected design with a 0.41-inch diameter and 1-1/2-inch length. Constructed as part of the Amp-Trap family, it meets CE and UL standards (Guide JFHR2, File E60314) for reliable overcurrent protection in motor control centers, transformers, and power distribution equipment.

Key Features & Specifications

• Type: A60Q current-limiting fuse with single-barrel ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 20A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Weight: 0.02 lb
• Standards: CE, UL Recognized (Guide JFHR2, File E60314)
• Applications: Motor protection, transformers, power distribution
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Certification: CE, UL Recognized

Product Identification

• UPC: 078200194896
• GTIN: 00782001948962
