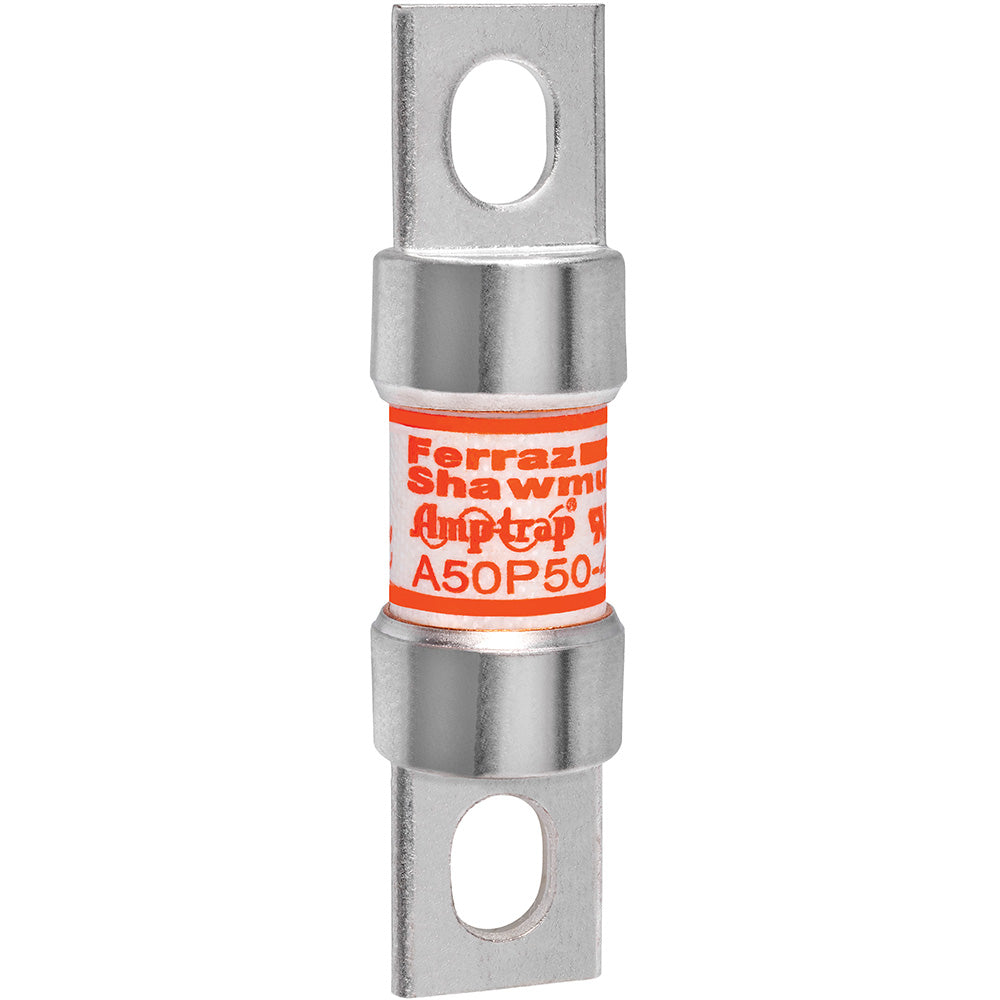

Ferraz Shawmut A50P50-4 - Low Voltage Fuse 50A (100kA AIC @500V)

Ferraz Shawmut A50P50-4 is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This 500V-rated fuse handles 50A continuous current with a 100kA interrupting capacity at rated voltage, featuring a compact bolt-in blade design with a 0.81-inch diameter and 3.19-inch length. Constructed as part of the Amp-Trap family, it meets stringent industry standards for overcurrent protection in demanding environments. Typical applications include motor control centers, switchgear, and industrial control panels where reliable short-circuit protection is critical.

Key Features & Specifications

• Type: A50P current-limiting fuse with single barrel construction
• Voltage Rating: 500V AC
• Current Rating: 50A
• Dimensions: 3.19 in length x 0.81 in diameter
• Weight: 0.2 lb
• Connection: Bolt-in blade terminal
• AIC Rating: 100kA at 500V
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, motor protection, switchgear
• Family: Amp-Trap series
• Country of Origin: Mexico

Product Identification

• UPC: 782001945992
• GTIN: 00782001945992
