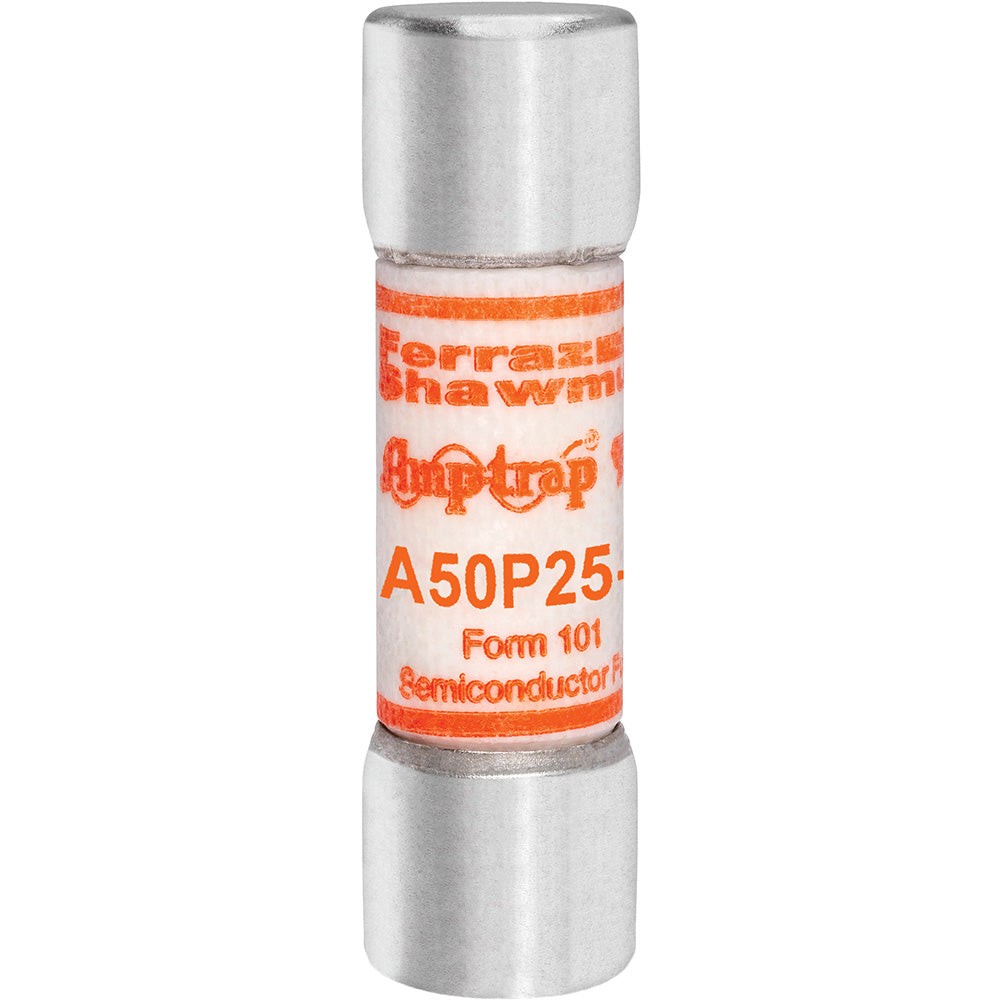

Ferraz Shawmut A50P25-1 - Low Voltage Fuse 25A 500V (100kA AIC)

Ferraz Shawmut A50P25-1 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This 500V-rated fuse features a 25A current rating with a 100kA interrupting capacity at 500V, housed in a compact 0.56" diameter ferrule-connected single-barrel design. The fuse's current-limiting construction provides fast-acting protection against short circuits and overloads while meeting industry standards for low-voltage applications. Typical uses include motor branch circuits, transformer protection, and industrial control panels where reliable overcurrent protection is critical.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse with ferrule connection
• Voltage Rating: 500V AC
• Current Rating: 25A
• Dimensions: 0.56" diameter
• Standards: UL/CSA recognized
• Applications: Motor circuits, transformers, industrial controls
• AIC rating: 100kA@500V
• Connection: Ferrule
• Barrels: 1
• Weight: 0.04 lb

Product Identification

• UPC: 78200194814
• GTIN: 00782001948146
