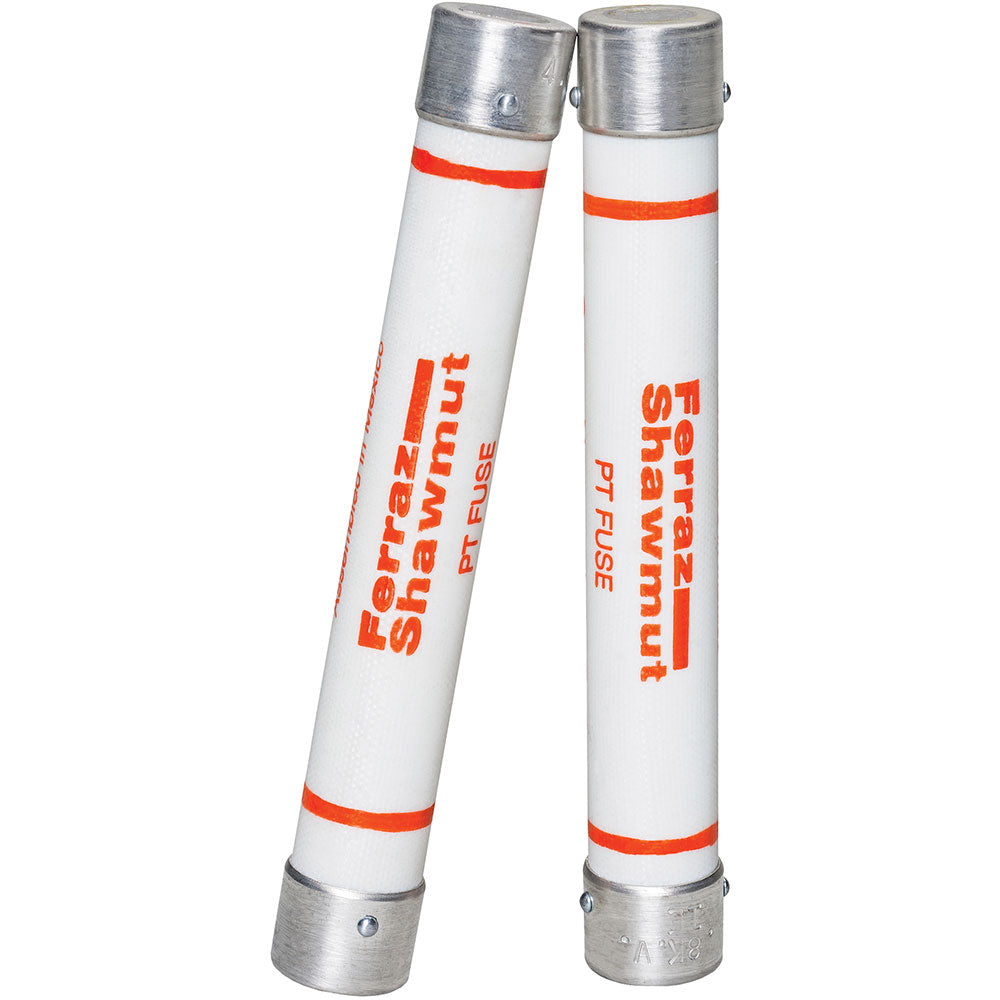

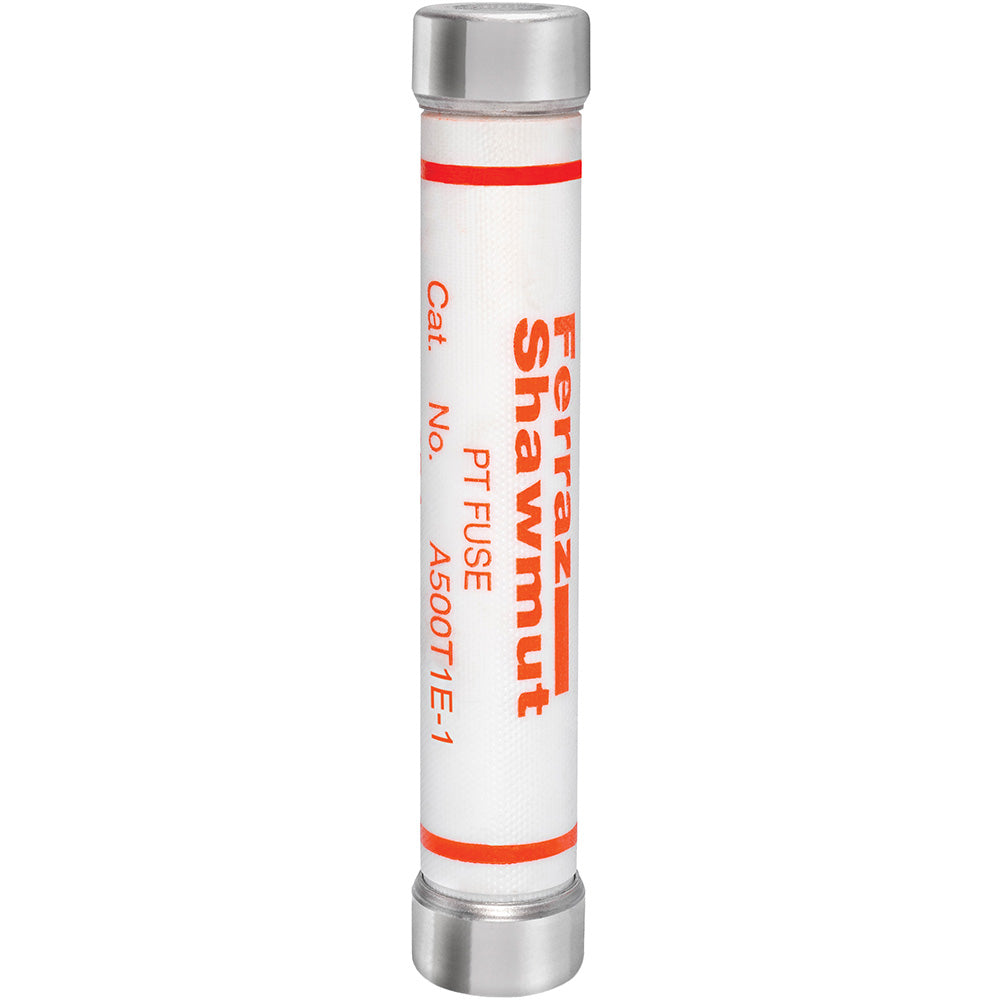

Mersen A500T1E-1 - Medium Voltage Fuse 1A 5000V (80kA AIC Rating)

Mersen A500T1E-1 is a medium voltage current-limiting fuse from the Amp-Trap Series designed to provide reliable overcurrent protection in industrial power distribution systems. This Class E fuse features a 5000V AC voltage rating and a 1A current rating, engineered to interrupt fault currents up to 80kA at 5kV. The single-barrel construction measures 5.63 inches in length with a 1-inch diameter and operates within a temperature range of -25 to 70°C (-13 to 158°F). Compliant with industry standards for medium voltage protection, this fuse is manufactured in Mexico and utilizes a 5-inch clip center spacing for secure mounting in compatible fuse holders and switches across utility, industrial, and commercial applications.

Key Features & Specifications

• Type: Medium Voltage Current-Limiting Fuse, Class E, Single Barrel
• Voltage Rating: 5000V AC
• Current Rating: 1A
• Dimensions: 5.63 inches length, 1 inch diameter
• Standards: Industry Standards for Medium Voltage Protection
• Applications: Industrial Power Distribution, Utility Systems, Commercial Electrical Systems
• AIC rating: 80kA@5kV
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Clip Center: 5 inches
• Class Rating: E
• Barrels: 1
• Weight: 5 lb
• Family: Amp-Trap Series
• Country of Origin: Mexico

Product Identification

• UPC: 782001800734
• GTIN: 00782001800734
