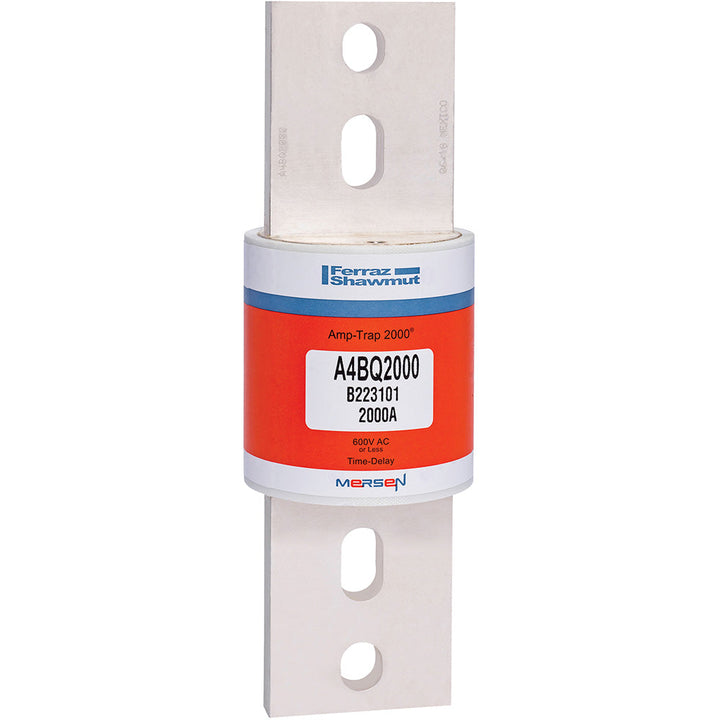

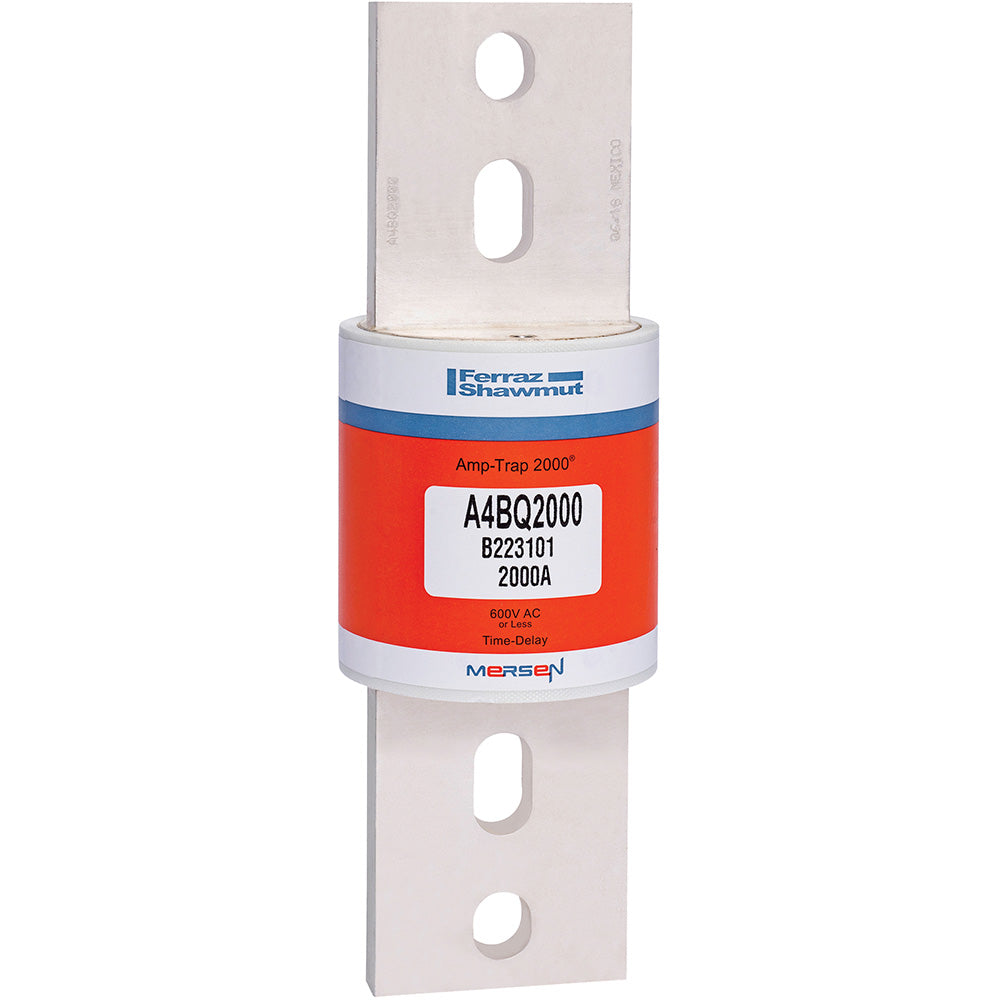

Ferraz Shawmut A4BQ2000 - Class L Fuse 2000A (200kA@600V Interrupting Capacity)

Ferraz Shawmut A4BQ2000 is a low-voltage current-limiting fuse designed for high-capacity circuit protection in industrial power distribution systems. This Amp-Trap 2000 series fuse features a 600V AC rating with a 2000A current capacity and 200kA interrupting rating at 600V, housed in a robust single-barrel design with 3.5" diameter and Class L construction. The fuse meets stringent industry standards for short-circuit protection, utilizing current-limiting technology to safeguard electrical equipment. Typical applications include motor control centers, switchgear, and transformer protection in demanding industrial environments.

Key Features & Specifications

• Type: Class L current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 2000A
• Dimensions: 3.5" diameter
• Standards: UL/CSA compliant
• Applications: Industrial power distribution, switchgear, MCCs
• AIC rating: 200kA@600V
• Class Rating: L
• Weight: 8 lb

Product Identification

• UPC: 782001939410
• GTIN: 00782001939410
