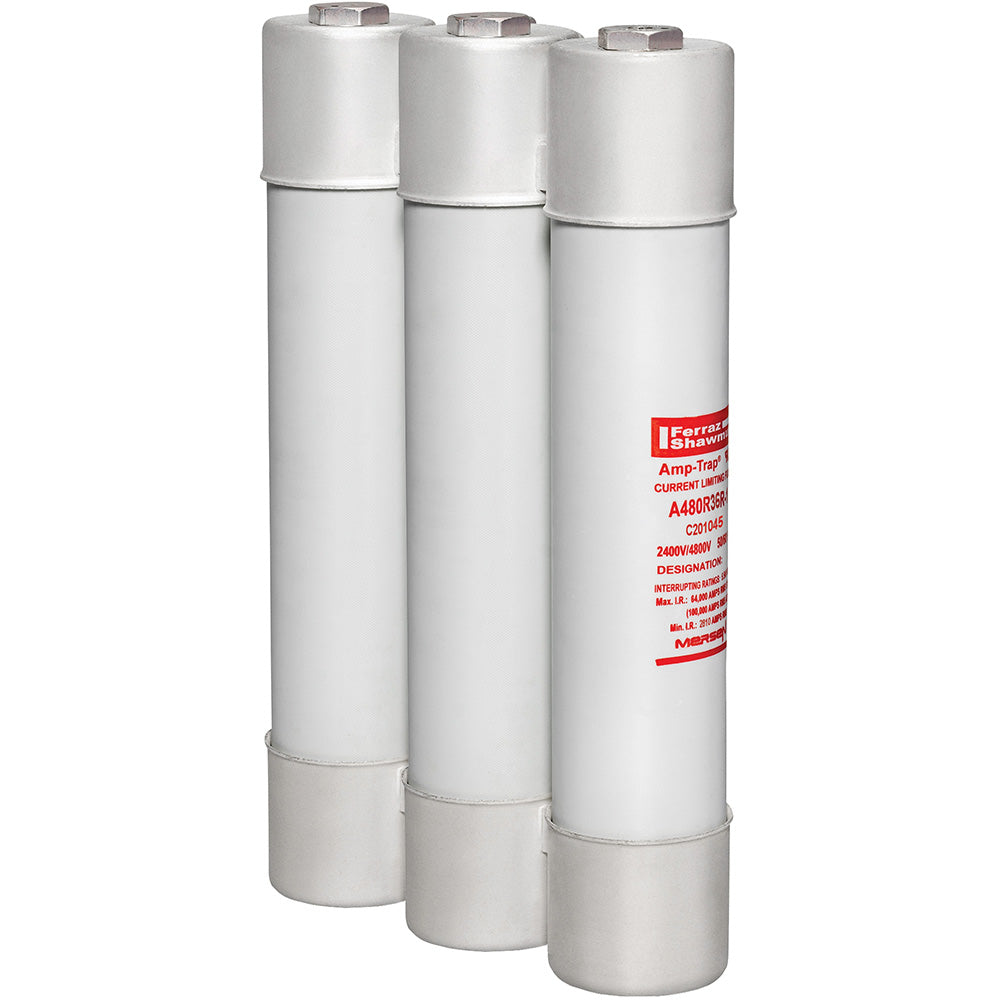

Mersen A480R36R-1 - Medium Voltage Fuse 4800V/650A (65kA AIC)

Mersen A480R36R-1 is a medium-voltage current-limiting fuse designed for high-interrupting-capacity circuit protection in industrial power systems. Rated for 4800V AC operation with a 650A current rating, this Amp-Trap series fuse features a robust 3-barrel design with an interrupting capacity of 65kA at 4.8kV. The R-class fuse measures 3" in diameter with 12.5" clip centers and weighs 11 lb, constructed for reliable performance in demanding environments while meeting industry standards for medium-voltage protection. Typical applications include motor control centers, transformers, and feeder circuits requiring high fault current interruption.

Key Features & Specifications

• Type: Current-limiting medium-voltage fuse (A480R series)
• Voltage Rating: 4800V AC
• Current Rating: 650A
• Dimensions: 3" diameter, 12.5" clip centers
• Standards: R-class rated
• Applications: Industrial power distribution, MCCs, transformers
• AIC rating: [email protected]
• Barrels: 3
• Weight: 11 lb

Product Identification

• UPC: 782001808099
• GTIN: 00782001808099
