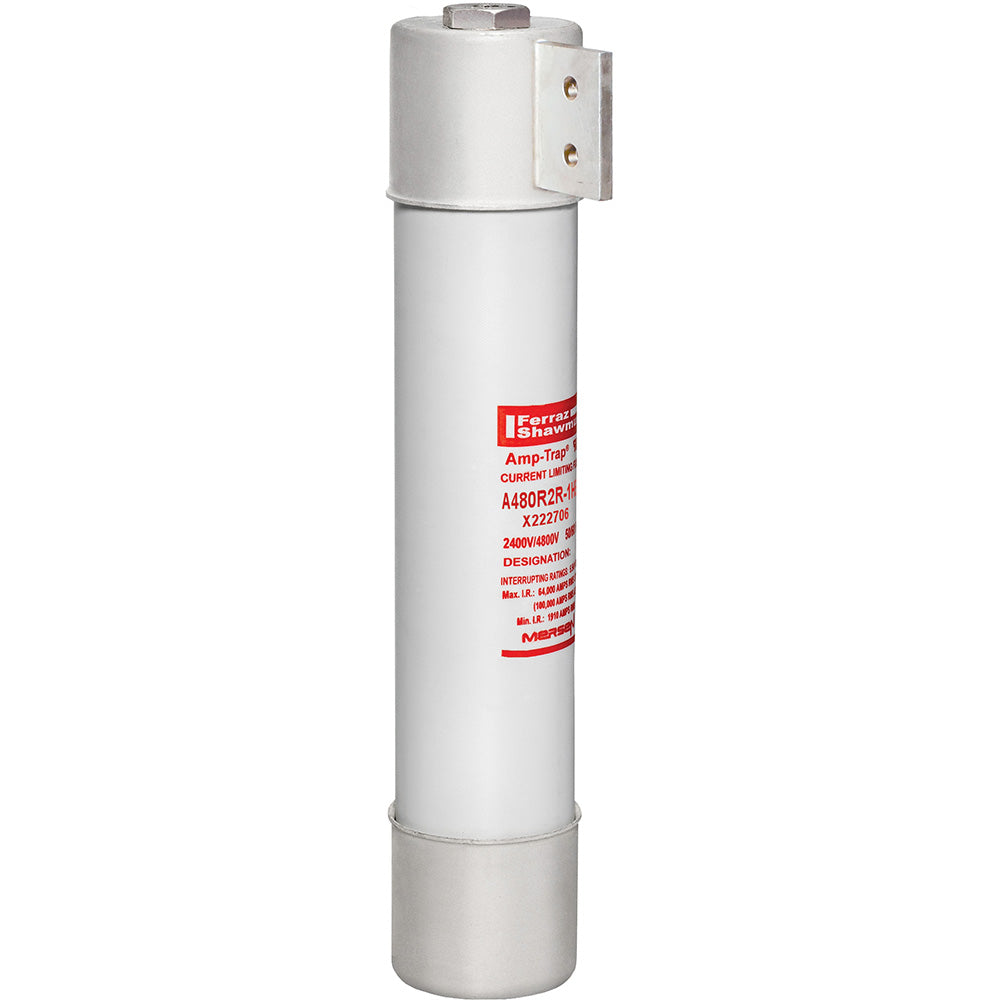

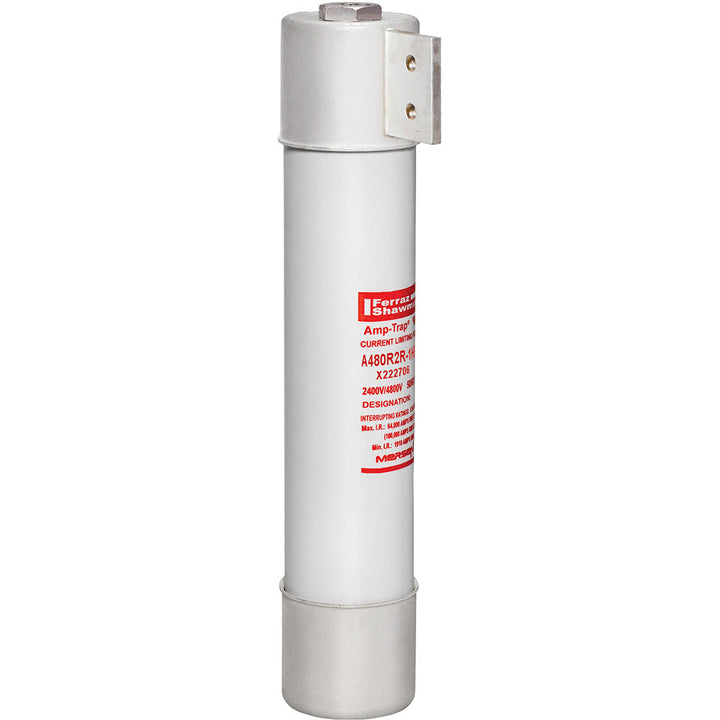

Mersen A480R2R-1HE - Medium Voltage Fuse 4800V/70A (Class R 50kA AIC)

Mersen A480R2R-1HE is a medium voltage fuse from the Amp-Trap family designed for high-current circuit protection in industrial power systems. This Class R fuse features a 4800V AC voltage rating and 70A current rating, housed in a robust 3-inch diameter single-barrel construction with 12.75-inch clip centers. It meets UL standards (File E93367 for Amp-Trap and E191980 for 9F60) with a 50kA interrupting capacity at 4.8kV, providing reliable protection for transformers, motors, and feeder circuits in demanding electrical distribution applications.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse (Class R)
• Voltage: 4800V AC
• Current: 70A
• Dimensions: 3" diameter, 12.75" clip centers
• Standards: UL File E93367 (Amp-Trap), UL File E191980 (9F60)
• Applications: Transformer protection, motor circuits, feeder protection
• AIC rating: [email protected]
• Barrels: 1
• Class Rating: R
• Weight: 11 lb

Product Identification

• UPC: 782001801434
• GTIN: 00782001801434
