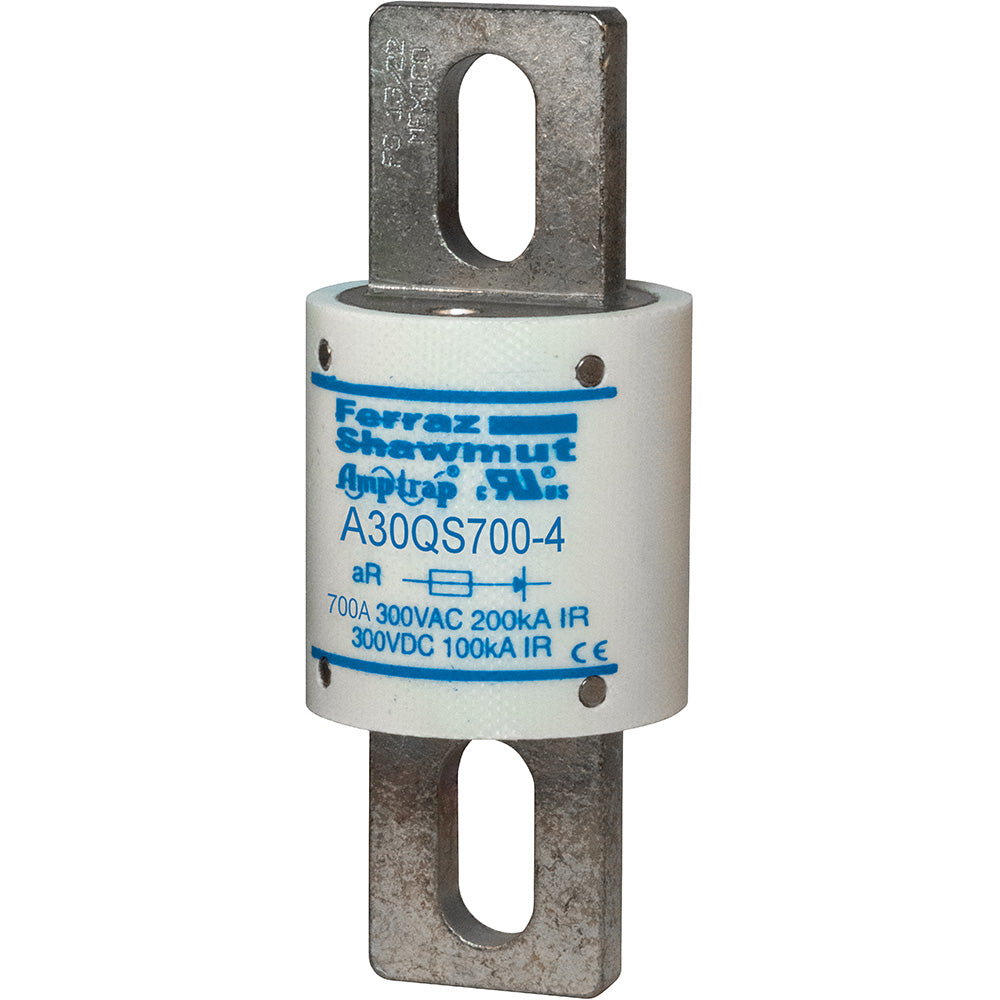

Ferraz Shawmut A30QS700-4 - Low Voltage Fuse 700A@300V (200kA AIC)

Ferraz Shawmut A30QS700-4 is a low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial power distribution systems. This 700A bolt-in fuse features a 300V AC rating with a 200kA interrupting capacity at rated voltage, housed in a compact 1.5-inch diameter ceramic body with bolt-in termination for secure installation. Certified to UL, CE, and JFHR2 standards, it provides reliable short-circuit protection for motor control centers, switchgear, and other heavy-duty electrical equipment requiring Type A30QS fuses.

Key Features & Specifications

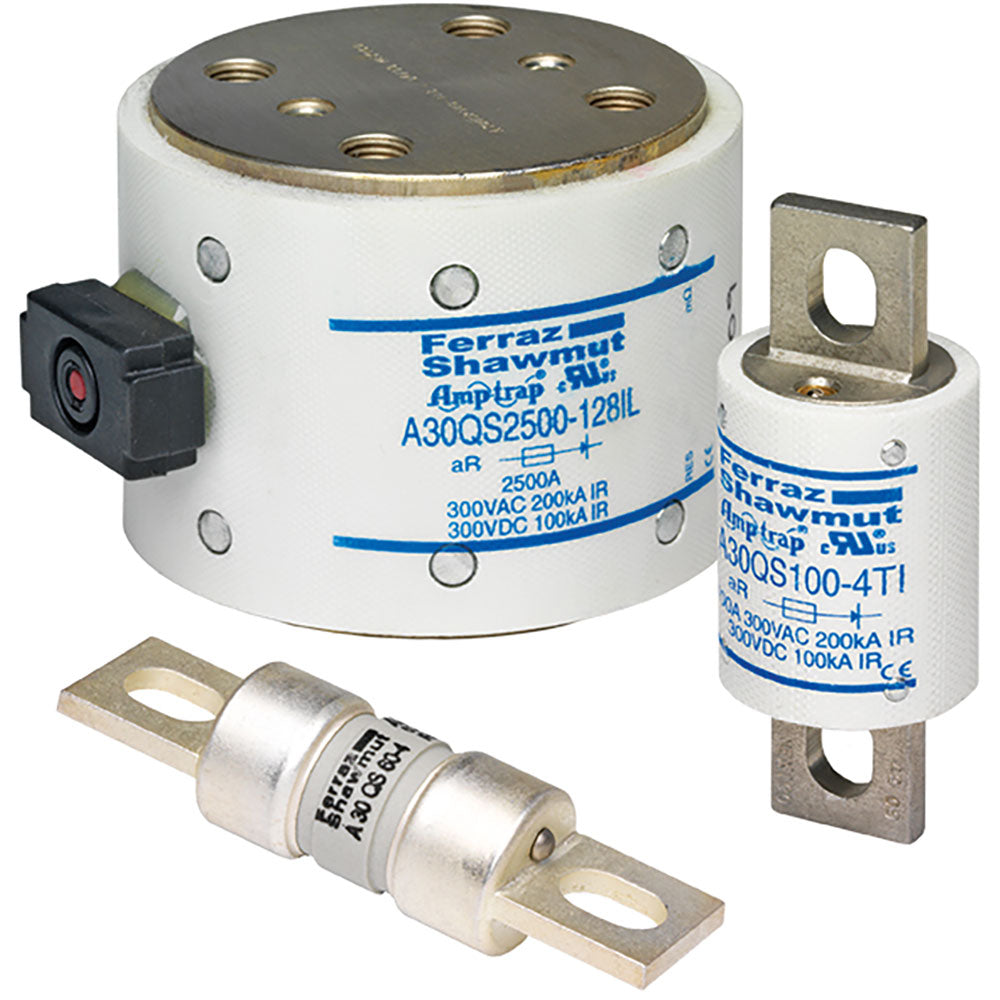

• Type: Current-limiting low-voltage fuse (Ferraz Shawmut Amp-Trap family)
• Voltage Rating: 300V AC
• Current Rating: 700A
• Dimensions: 1.5" diameter x 3-27/32" length
• Weight: 3 lb
• Connection: Bolt-in termination
• AIC Rating: 200kA@300V
• Certification: UL Recognized (File E60314), CE, Guide JFHR2
• Construction: Ceramic body with single-barrel design
• Standards: Meets industrial protection requirements for Type A30QS fuses
• Applications: Motor control centers, switchgear, industrial power distribution

Product Identification

• UPC: 78200128090
• GTIN: 00782001280901
