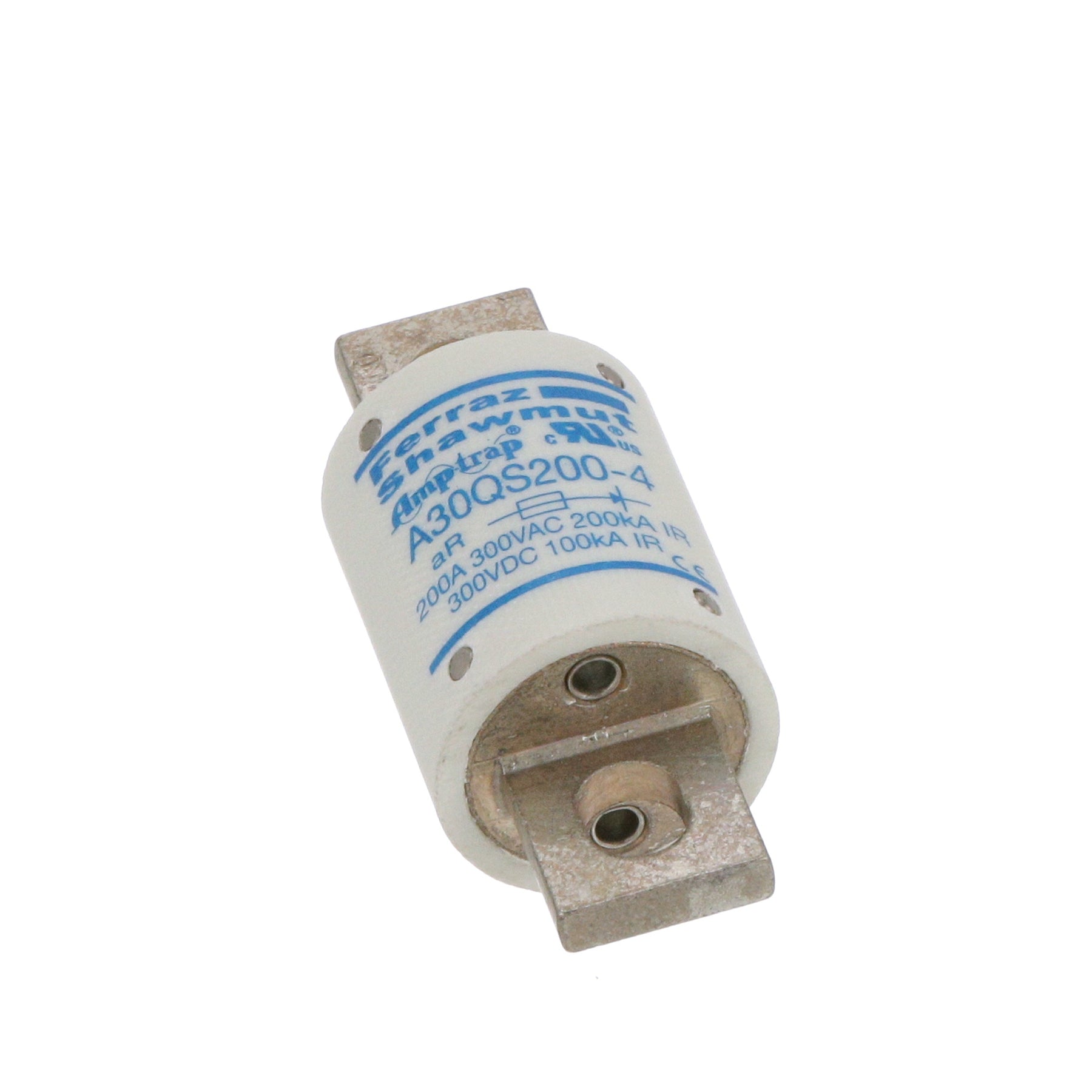

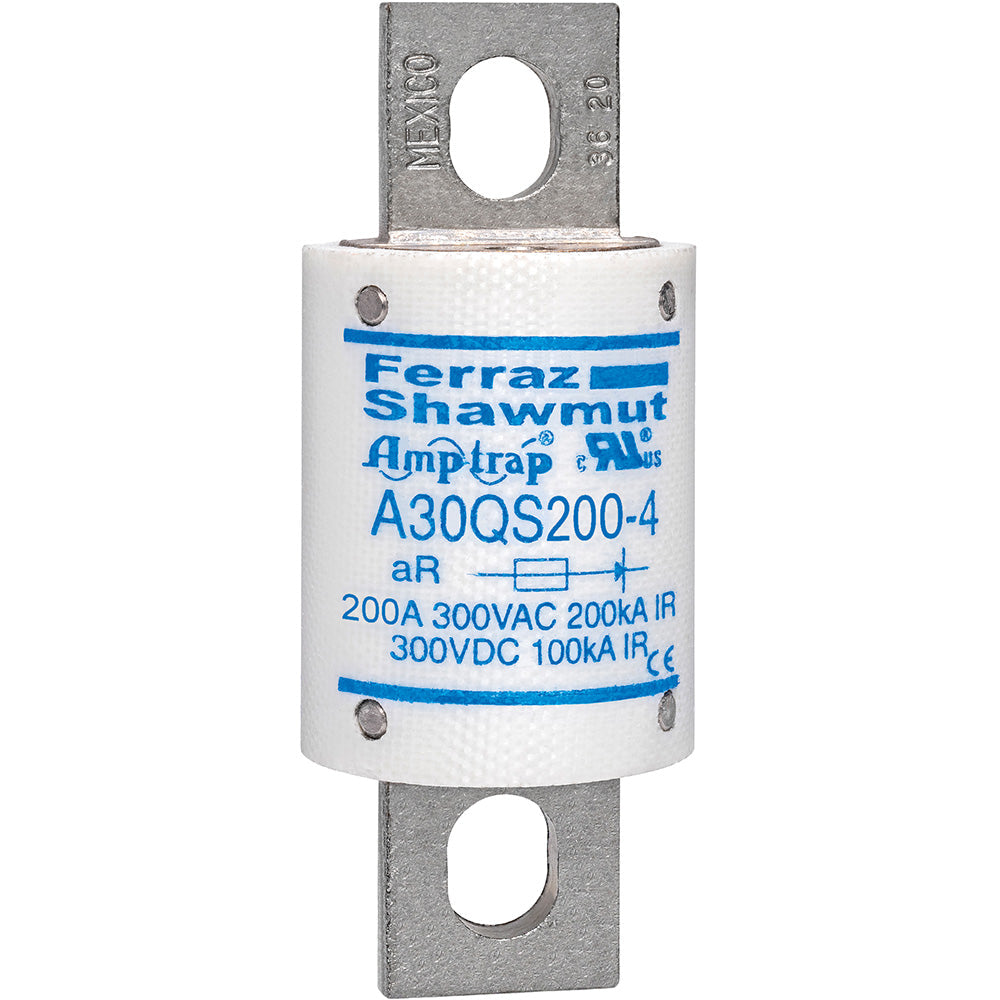

Ferraz Shawmut A30QS200-4 - Low Voltage Fuse 200A (200kA@300V Interrupting Capacity)

Ferraz Shawmut A30QS200-4 is a low-voltage current-limiting fuse designed for industrial circuit protection with high interrupting capacity. This 300V-rated fuse handles 200A continuous current and provides 200kA AIC protection in a compact bolt-in configuration measuring 3.13 inches long with a 1.22-inch diameter. Constructed as a single-barrel Amp-Trap class device, it meets CE, UL Recognized (Guide JFHR2, File E60314) standards for reliable operation in motor control centers, switchgear, and power distribution systems requiring robust short-circuit protection.

Key Features & Specifications

• Type: A30QS current-limiting low-voltage fuse
• Voltage Rating: 300V AC
• Current Rating: 200A
• Dimensions: 3.13" length x 1.22" diameter
• Weight: 5 lb
• Standards: CE, UL Recognized (Guide JFHR2, File E60314)
• Applications: Industrial switchgear, motor protection, power distribution
• Connection: Bolt-in
• Barrels: 1
• AIC rating: 200kA@300V
• Certification: UL Recognized Component
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 782001280802
• GTIN: 00782001280802
