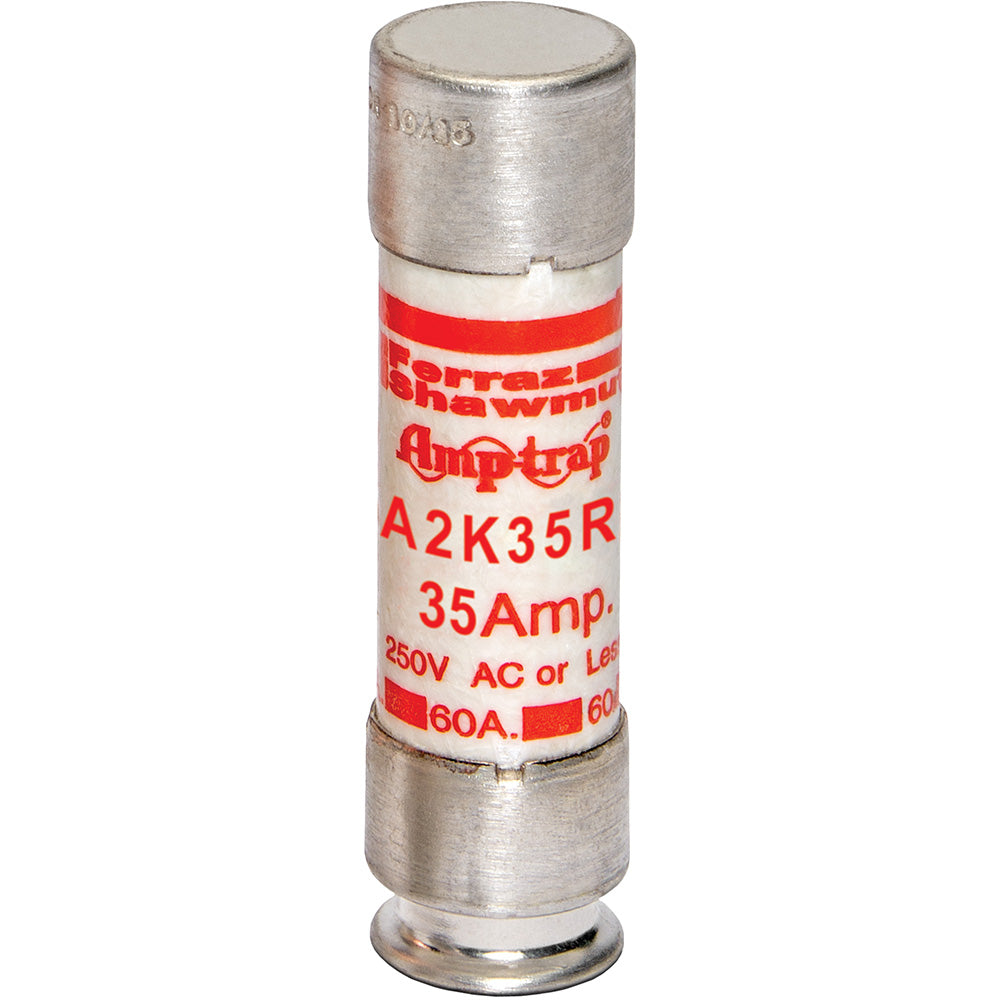

Mersen A2K35R - RK1 Class Fuse 35A 250V (200kA AIC)

Mersen A2K35R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 250V AC rating with a 35A current capacity and 200kA interrupting rating at 250V for reliable short-circuit protection. The cylindrical design measures 3 inches in length with a 0.81-inch diameter, constructed with a single barrel configuration for efficient current interruption. Compliant with industry standards for RK1 fuses, it provides time-delay characteristics to withstand temporary overloads while protecting against fault currents. Typical applications include motor control centers, panelboards, and industrial control equipment requiring robust circuit protection.

Key Features & Specifications

• Type: A2K-R series current-limiting time-delay fuse
• Voltage Rating: 250V AC
• Current Rating: 35A
• Dimensions: 3" length x 0.81" diameter
• Standards: RK1 class rating
• Applications: Industrial control circuits, motor protection, panelboards
• AIC rating: 200kA@250V
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 78200191512
• GTIN: 00782001915124
