Mersen A2D8R - RK1 Class Fuse 250V/8A (200kA AIC @250V)

Mersen
Price
Save $576.40
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

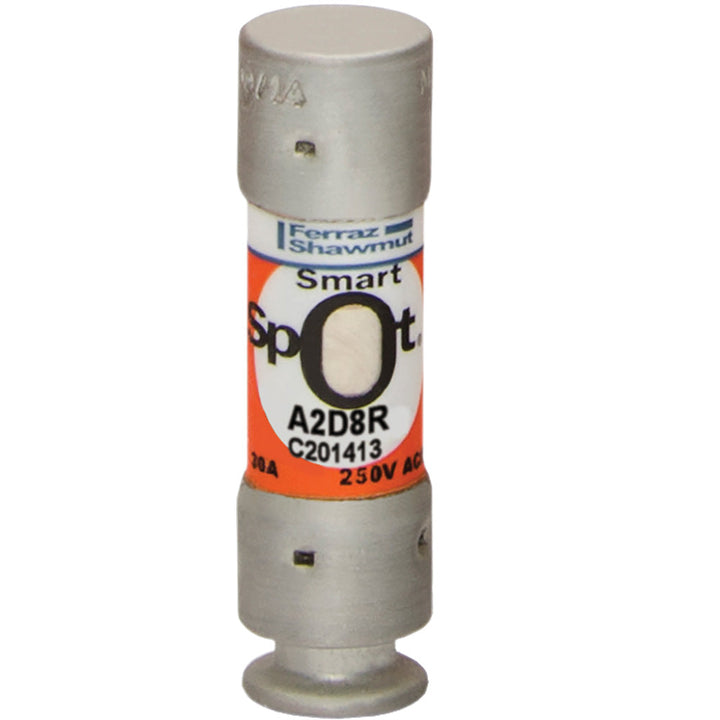

Mersen A2D8R is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 250V AC/DC voltage rating and 8A current rating with a 200kA interrupting capacity at rated voltage. The compact cylindrical design measures 2" in length with a 0.56" diameter, constructed with time-delay characteristics for motor circuit protection. It meets CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137) for reliable performance in demanding applications including motor starters, transformers, and power distribution equipment.

Key Features & Specifications
  • Type: A2D-R time-delay current-limiting fuse
  • Voltage Rating: 250V AC/DC
  • Current Rating: 8A
  • Dimensions: 2" length x 0.56" diameter
  • Weight: 0.04 lb
  • Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
  • Applications: Motor circuits, transformers, power distribution
  • Class Rating: RK1
  • Barrels: 1
  • AIC rating: 200kA@250V
  • Certification: UL Recognized, CSA Certified
Product Identification
  • UPC: 782001990787
  • GTIN: 00782001990787
