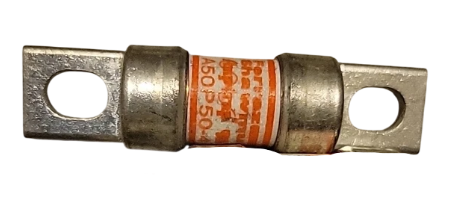

Mersen A25Z50-4 - Amp-Trap Current-Limiting Fuse 50A (100kA AIC @300V)
Mersen A25Z50-4 - Amp-Trap Current-Limiting Fuse 50A (100kA AIC @300V)
Mersen A25Z50-4 - Amp-Trap Current-Limiting Fuse 50A (100kA AIC @300V)
Mersen A25Z50-4 - Amp-Trap Current-Limiting Fuse 50A (100kA AIC @300V)

Mersen A25Z50-4 - Amp-Trap Current-Limiting Fuse 50A (100kA AIC @300V)

Mersen
Price
Save $325.43
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Mersen A25Z50-4 is a low voltage current-limiting fuse designed for comprehensive circuit protection in industrial power distribution systems. This 50A rated fuse operates at 300V AC/DC and features a bolt-in blade connection for secure installation. Constructed with a single barrel design and EFA velocity characteristics, the fuse provides current limitation and achieves a 100kA interrupting rating at 300V. The Amp-Trap family fuse meets rigorous industrial standards for reliable performance in demanding applications including motor control centers, panelboards, and industrial control equipment.

Key Features & Specifications
  • Type: Low Voltage Current-Limiting Fuse, Bolt-In Blade Connection
  • Voltage Rating: 300V AC/DC
  • Current Rating: 50A
  • Dimensions: 1332 diameter
  • Standards: Industrial Protection Standards
  • Applications: Industrial Power Distribution, Motor Control Centers, Panelboards
  • AIC rating: 100kA@300V
  • Connection: Bolt-In Blade
  • Barrels: 1
  • Velocity: EFA
  • Fuse Class: Amp-Trap Family
  • Weight: 5.19 lb


Product Identification
  • UPC: 78200194233
  • GTIN: 00782001942335
