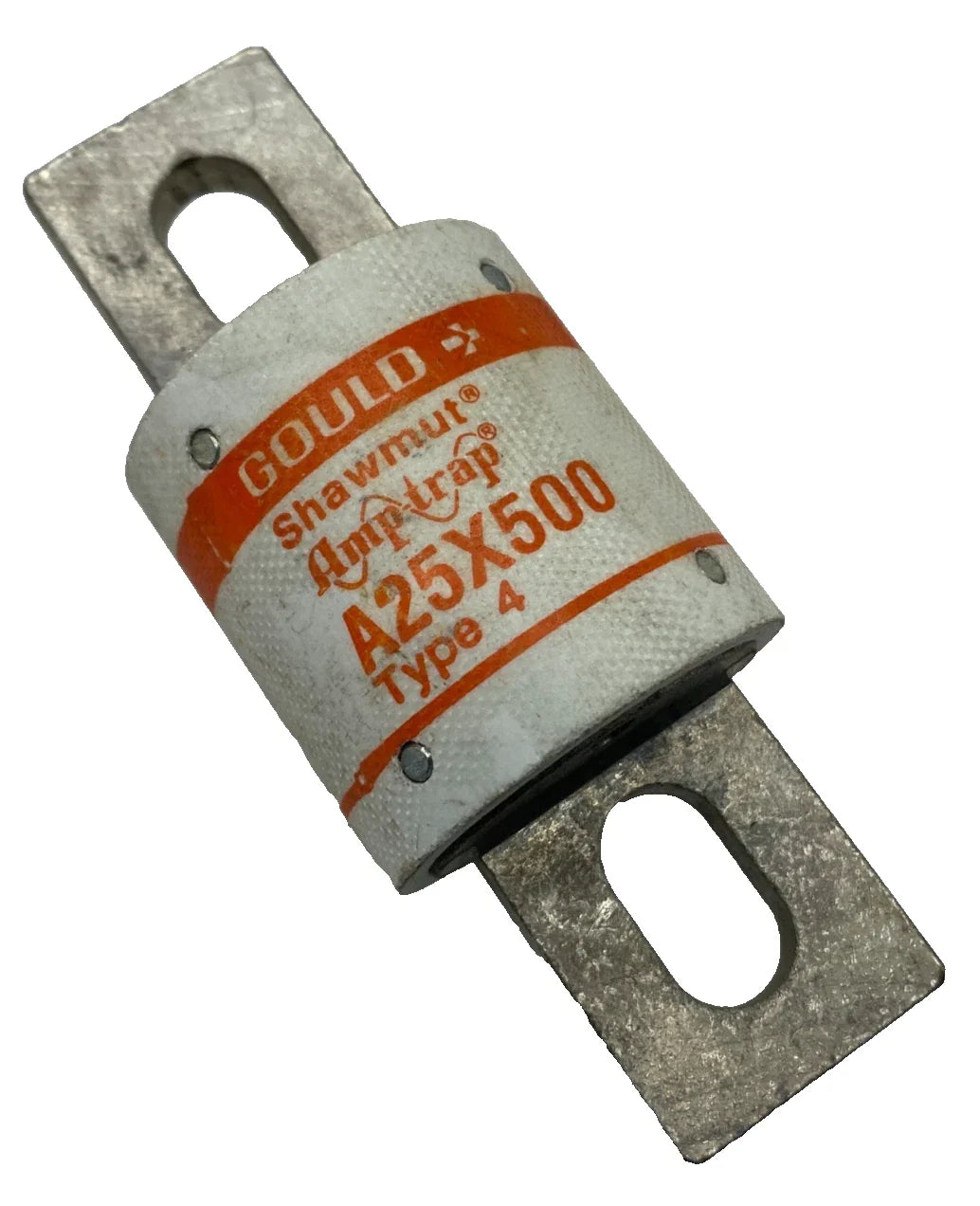

Mersen A25X500-4 - Semiconductor Fuse 500A (10.6kA AIC @ 250V)

Mersen A25X500-4 is a low voltage semiconductor protection fuse designed for safeguarding sensitive electronic components from short-circuit and overload conditions. This 500A rated fuse operates at 250V AC with an interrupting rating of 10.6kA and features a single-barrel construction with bolt-in connection terminals for secure installation. The fuse measures 1.5 inches in diameter and weighs 5.19 lb, constructed to meet industry standards for semiconductor protection applications. It complies with relevant electrical safety standards and is typically employed in industrial power conversion equipment, motor drives, and rectifier circuits where precise protection of semiconductors is critical.

Key Features & Specifications

• Type: Amp-Trap A25X semiconductor protection fuse with single-barrel construction
• Voltage Rating: 250V AC
• Current Rating: 500A
• Dimensions: 1.5" diameter
• Standards: Industry standards for semiconductor protection
• Applications: Industrial power conversion equipment, motor drives, rectifier circuits
• AIC rating: 10.6kA @ 250V
• Connection: Bolt-In
• Barrels: 1
• Class Rating: Semiconductor
• Weight: 5.19 lb

Product Identification

• UPC: 78200194276
• GTIN: 00782001942762
