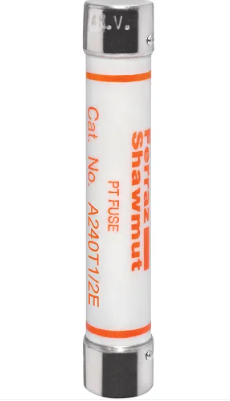

Mersen A240T1/2E - Medium Voltage Fuse 2400V (50kA AIC @ 2.4kV)

Mersen A240T1/2E is a medium-voltage current-limiting fuse from the Amp-Trap Series, designed for protecting electrical equipment in industrial power distribution systems. It features a 2400V AC rating with a 0.5A current capacity and 50kA interrupting capacity at 2.4kV, housed in a compact 0.81-inch diameter single-barrel design with 4-inch clip centers. The Class E-rated fuse meets stringent industry standards for medium-voltage protection, constructed with durable materials for reliable operation in harsh environments. Typical applications include motor protection, transformer circuits, and feeder protection in industrial plants and utility systems.

Key Features & Specifications

• Type: Current-limiting medium-voltage fuse (Amp-Trap Series)
• Voltage Rating: 2400V AC
• Current Rating: 0.5A
• Dimensions: 0.81" diameter, 4" clip centers
• Standards: Class E rated
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: [email protected]
• Barrels: 1
• Family: Amp-Trap Series

Product Identification

• UPC: 78200180044
• GTIN: 00782001800444
